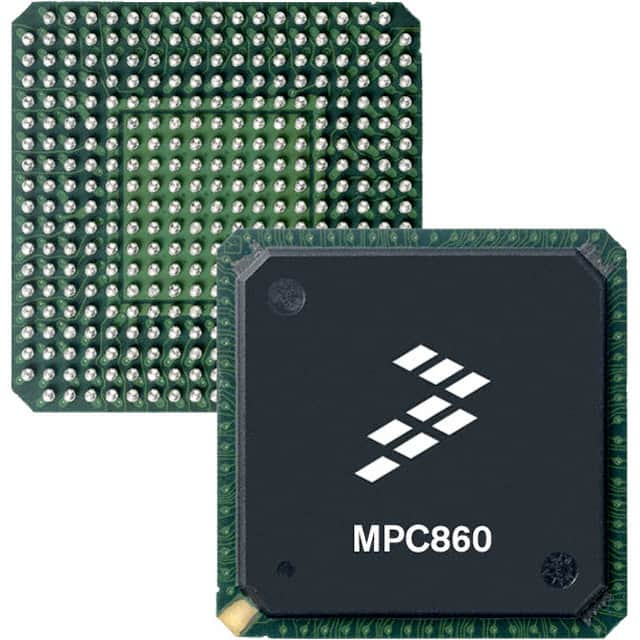

MPC860PCZQ66D4
IC MPU MPC8XX 66MHZ 357BGAManufacturer: NXP USA Inc.
Categories: Microprocessors
Quality Control: Learn More
NXP USA Inc. MPC8xx series microprocessor, part number MPC860PCZQ66D4, is a 32-bit, single-core processor operating at 66MHz. This device features a Communications Processor Module (CPM) for co-processing tasks and supports various peripheral interfaces including HDLC/SDLC, I2C, IrDA, PCMCIA, SPI, TDM, and UART/USART. Network connectivity is provided with four 10Mbps Ethernet ports and one 10/100Mbps Ethernet port. The processor includes DRAM controllers and is housed in a 357-PBGA (25x25) surface-mount package. Its operating temperature range is -40°C to 95°C (TA), with I/O voltage at 3.3V. This component finds application in networking infrastructure and industrial control systems.
Additional Information
Series: MPC8xxRoHS Status: RoHS non-compliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | 357-BBGA |
| Mounting Type | Surface Mount |
| Speed | 66MHz |
| Operating Temperature | -40°C ~ 95°C (TA) |
| Core Processor | MPC8xx |
| Voltage - I/O | 3.3V |
| Supplier Device Package | 357-PBGA (25x25) |
| Ethernet | 10Mbps (4), 10/100Mbps (1) |
| USB | - |
| Number of Cores/Bus Width | 1 Core, 32-Bit |
| Co-Processors/DSP | Communications; CPM |
| RAM Controllers | DRAM |
| Graphics Acceleration | No |
| Display & Interface Controllers | - |
| Security Features | - |
| SATA | - |
| Additional Interfaces | HDLC/SDLC, I2C, IrDA, PCMCIA, SPI, TDM, UART/USART |
