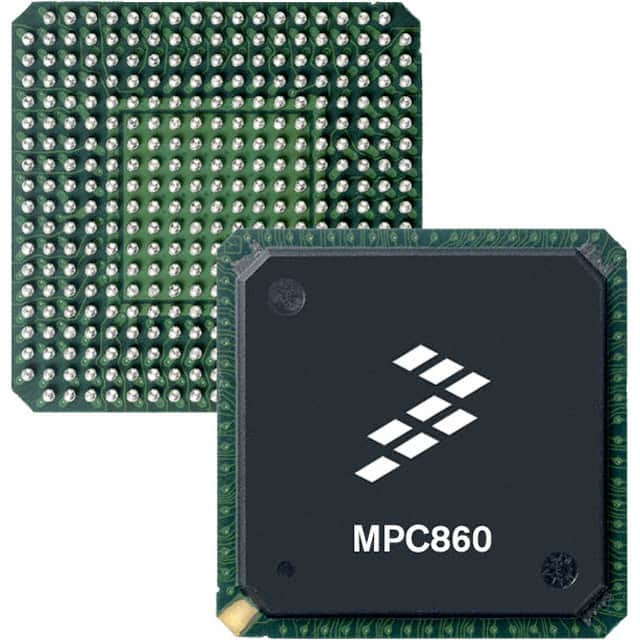

MPC860PCZQ50D4
IC MPU MPC86XX 50MHZ 357BGAManufacturer: NXP USA Inc.
Categories: Microprocessors
Quality Control: Learn More
NXP USA Inc. MPC860PCZQ50D4 is a 32-bit, single-core MPC860 microprocessor operating at 50MHz. This component from the MPC86xx series features a Communications Processor Module (CPM) for co-processing and offers a comprehensive set of interfaces including HDLC/SDLC, I2C, IrDA, PCMCIA, SPI, TDM, and UART/USART. Network connectivity is supported with four 10Mbps Ethernet ports and one 10/100Mbps Ethernet port. The device includes DRAM controllers and is housed in a 357-PBGA (25x25) package, designed for surface mounting. Its operational temperature range is -40°C to 95°C (TJ). This microprocessor is widely utilized in networking infrastructure, telecommunications equipment, and industrial control systems.
Additional Information
Series: MPC86xxRoHS Status: RoHS non-compliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TrayDownload Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | 357-BBGA |
| Mounting Type | Surface Mount |
| Speed | 50MHz |
| Operating Temperature | -40°C ~ 95°C (TJ) |
| Core Processor | MPC860 |
| Voltage - I/O | 3.3V |
| Supplier Device Package | 357-PBGA (25x25) |
| Ethernet | 10Mbps (4), 10/100Mbps (1) |
| USB | - |
| Number of Cores/Bus Width | 1 Core, 32-Bit |
| Co-Processors/DSP | Communications; CPM |
| RAM Controllers | DRAM |
| Graphics Acceleration | No |
| Display & Interface Controllers | - |
| Security Features | - |
| SATA | - |
| Additional Interfaces | HDLC/SDLC, I2C, IrDA, PCMCIA, SPI, TDM, UART/USART |
