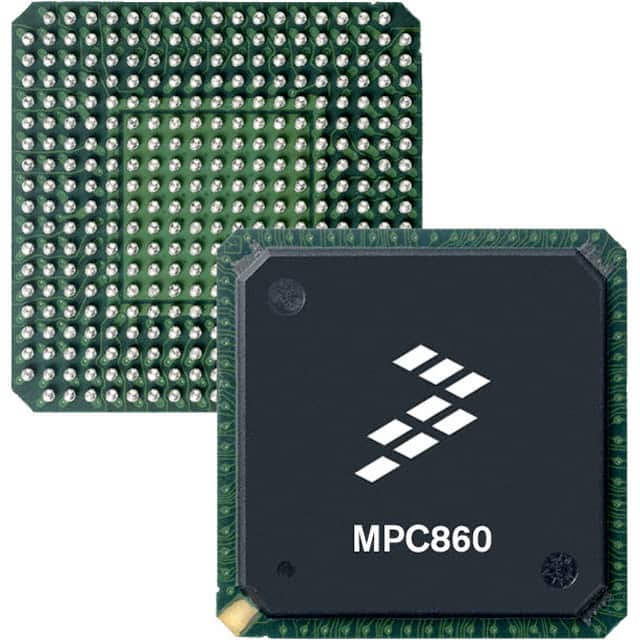

MPC860DEZQ50D4
IC MPU MPC8XX 50MHZ 357BGAManufacturer: NXP USA Inc.
Categories: Microprocessors
Quality Control: Learn More
NXP USA Inc.'s MPC8xx series MPC860DEZQ50D4 is a 32-bit PowerPC microprocessor featuring a single core operating at 50MHz. This component is housed in a 357-PBGA (25x25) package, suitable for surface mount applications. Its architecture includes a Communications Processor Module (CPM) for enhanced communication capabilities. The device supports a range of interfaces including I2C, IrDA, PCMCIA, SPI, TDM, and UART/USART. It also offers dual 10Mbps Ethernet controllers and a DRAM controller. The operating temperature range is 0°C to 95°C (TA). The MPC860DEZQ50D4 finds application in networking infrastructure, telecommunications equipment, and industrial control systems.
Additional Information
Series: MPC8xxRoHS Status: RoHS non-compliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | 357-BBGA |
| Mounting Type | Surface Mount |
| Speed | 50MHz |
| Operating Temperature | 0°C ~ 95°C (TA) |
| Core Processor | MPC8xx |
| Voltage - I/O | 3.3V |
| Supplier Device Package | 357-PBGA (25x25) |
| Ethernet | 10Mbps (2) |
| USB | - |
| Number of Cores/Bus Width | 1 Core, 32-Bit |
| Co-Processors/DSP | Communications; CPM |
| RAM Controllers | DRAM |
| Graphics Acceleration | No |
| Display & Interface Controllers | - |
| Security Features | - |
| SATA | - |
| Additional Interfaces | I2C, IrDA, PCMCIA, SPI, TDM, UART/USART |
