MPC859PVR133A
IC MPU MPC8XX 133MHZ 357BGAManufacturer: NXP USA Inc.
Categories: Microprocessors
Quality Control: Learn More

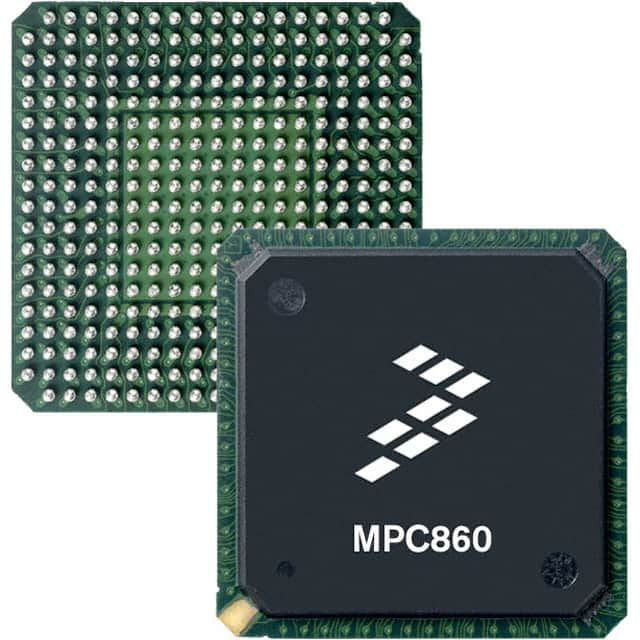

NXP USA Inc. MPC8xx series microprocessor, part number MPC859PVR133A, is a 32-bit, single-core processor operating at 133MHz. This surface-mount device features a 357-PBGA (25x25) package and supports DRAM memory. Integrated communication capabilities include a Communications Processor Module (CPM) for handling HDLC/SDLC, I2C, IrDA, PCMCIA, SPI, TDM, and UART/USART protocols. The device also offers dual Ethernet interfaces, supporting 10Mbps and 10/100Mbps speeds. This processor is commonly utilized in networking equipment, telecommunications infrastructure, and industrial control systems. Operating temperature range is 0°C to 95°C (TA) with I/O voltage at 3.3V.
Additional Information
Series: MPC8xxRoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | 357-BBGA |
| Mounting Type | Surface Mount |
| Speed | 133MHz |
| Operating Temperature | 0°C ~ 95°C (TA) |
| Core Processor | MPC8xx |
| Voltage - I/O | 3.3V |
| Supplier Device Package | 357-PBGA (25x25) |
| Ethernet | 10Mbps (1), 10/100Mbps (1) |
| USB | - |
| Number of Cores/Bus Width | 1 Core, 32-Bit |
| Co-Processors/DSP | Communications; CPM |
| RAM Controllers | DRAM |
| Graphics Acceleration | No |
| Display & Interface Controllers | - |
| Security Features | - |
| SATA | - |
| Additional Interfaces | HDLC/SDLC, I2C, IrDA, PCMCIA, SPI, TDM, UART/USART |
