MPC8572EVJAVNE
IC MPU MPC85XX 1.5GHZ 1023FCPBGAManufacturer: NXP USA Inc.
Categories: Microprocessors
Quality Control: Learn More

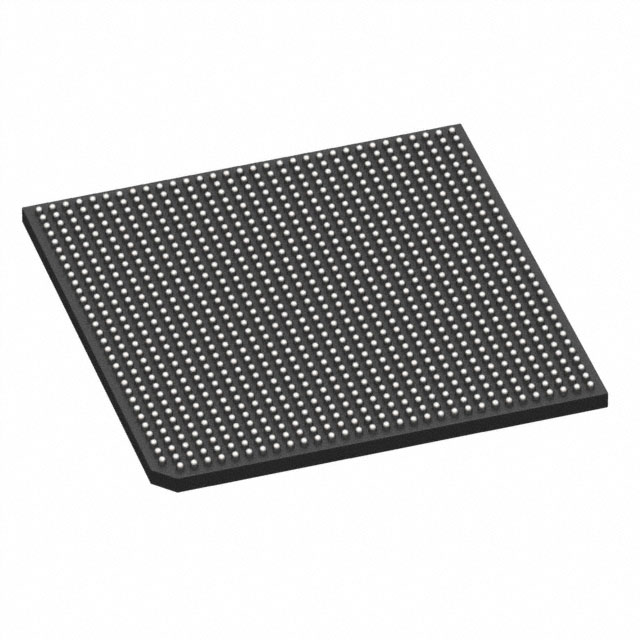

NXP USA Inc. MPC8572EVJAVNE is a PowerPC e500 microprocessor featuring a dual-core, 32-bit architecture operating at 1.5GHz. This device utilizes a 1023-FCPBGA (33x33) package, suitable for surface mounting. Key interfaces include DUART, HSSI, I2C, and RapidIO, alongside four 10/100/1000Mbps Ethernet ports. The processor incorporates signal processing capabilities through its SPE co-processor and security features with its SEC co-processor, including cryptography and a random number generator. RAM controllers support DDR2 and DDR3 memory. This component is designed for applications in networking, telecommunications, and industrial automation. Operating temperature ranges from 0°C to 105°C (TA), with I/O voltage support at 1.5V, 1.8V, 2.5V, and 3.3V.
Additional Information
Series: MPC85xxRoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BoxDownload Free CAD Model:
Technical Details:
| Packaging | Box |
| Package / Case | 1023-BBGA, FCBGA |
| Mounting Type | Surface Mount |
| Speed | 1.5GHz |
| Operating Temperature | 0°C ~ 105°C (TA) |
| Core Processor | PowerPC e500 |
| Voltage - I/O | 1.5V, 1.8V, 2.5V, 3.3V |
| Supplier Device Package | 1023-FCPBGA (33x33) |
| Ethernet | 10/100/1000Mbps (4) |
| USB | - |
| Number of Cores/Bus Width | 2 Core, 32-Bit |
| Co-Processors/DSP | Signal Processing; SPE, Security; SEC |
| RAM Controllers | DDR2, DDR3 |
| Graphics Acceleration | No |
| Display & Interface Controllers | - |
| Security Features | Cryptography, Random Number Generator |
| SATA | - |
| Additional Interfaces | DUART, HSSI, I2C, RapidIO |
