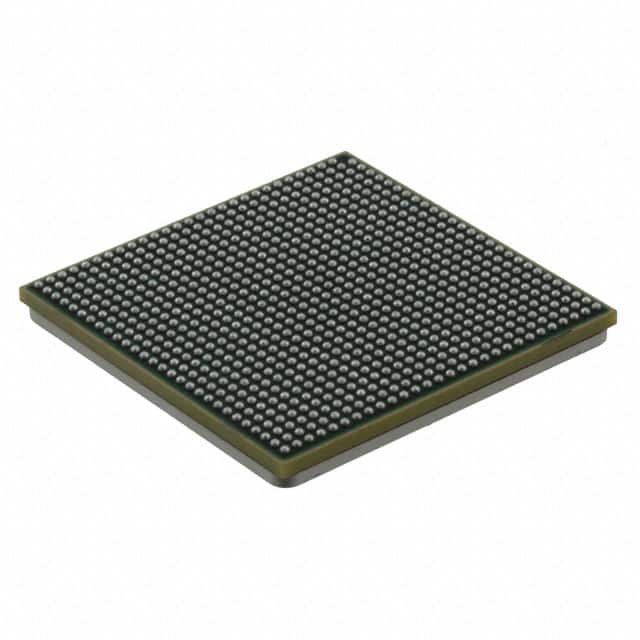

MPC8569EVJAUNLB
IC MPU MPC85XX 1.333GHZ 783BGAManufacturer: NXP USA Inc.
Categories: Microprocessors
Quality Control: Learn More
The NXP USA Inc. MPC8569EVJAUNLB is a 32-bit PowerPC e500v2 microprocessor featuring a single core operating at 1.333GHz. This component belongs to the MPC85xx series and is housed in a 783-FCPBGA (29x29) package. It offers extensive connectivity options including DUART, HSSI, I2C, MMC/SD, PCI, RapidIO, SPI, TDM, and UART interfaces. Network capabilities are robust with support for eight 10/100Mbps Ethernet ports and four 1Gbps Ethernet ports. The processor integrates a QUICC Engine for communications and a Security Engine (SEC) for cryptographic functions and random number generation. Memory support includes DDR2, DDR3, and SDRAM controllers. Additional features include USB 2.0 support and multiple I/O voltage options (1.0V, 1.5V, 1.8V, 2.5V, 3.3V). This device operates within an ambient temperature range of 0°C to 105°C and is suitable for applications in networking, telecommunications, and industrial automation.
Additional Information
Series: MPC85xxRoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | 783-BBGA, FCBGA |
| Mounting Type | Surface Mount |
| Speed | 1.333GHz |
| Operating Temperature | 0°C ~ 105°C (TA) |
| Core Processor | PowerPC e500v2 |
| Voltage - I/O | 1.0V, 1.5V, 1.8V, 2.5V, 3.3V |
| Supplier Device Package | 783-FCPBGA (29x29) |
| Ethernet | 10/100Mbps (8), 1Gbps (4) |
| USB | USB 2.0 (1) |
| Number of Cores/Bus Width | 1 Core, 32-Bit |
| Co-Processors/DSP | Communications; QUICC Engine, Security; SEC |
| RAM Controllers | DDR2, DDR3, SDRAM |
| Graphics Acceleration | No |
| Display & Interface Controllers | - |
| Security Features | Cryptography, Random Number Generator |
| SATA | - |
| Additional Interfaces | DUART, HSSI, I2C, MMC/SD, PCI, RapidIO, SPI, TDM, UART |
