MPC8569CVJANKGB
IC MPU MPC85XX 800MHZ 783FCPBGAManufacturer: NXP USA Inc.
Categories: Microprocessors
Quality Control: Learn More

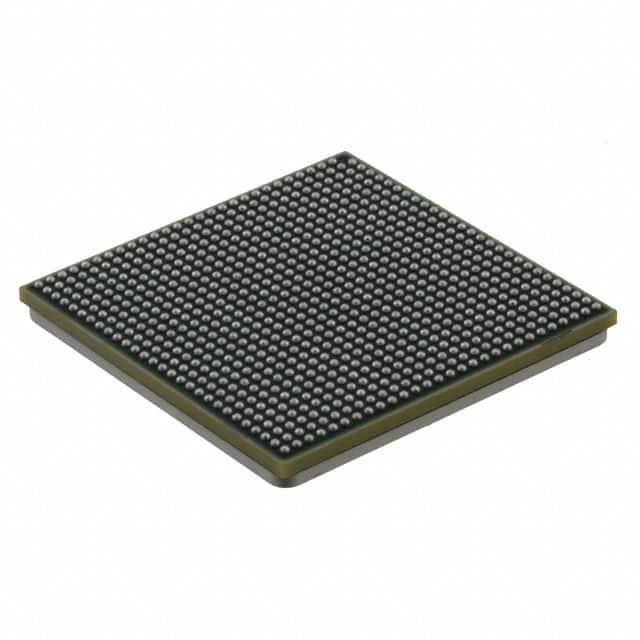

The NXP USA Inc. MPC85xx series MPC8569CVJANKGB is a 32-bit PowerPC e500v2 microprocessor featuring a single core operating at 800MHz. This component is housed in a 783-FCPBGA (29x29) package and supports surface mounting. It offers extensive connectivity options including DUART, HSSI, I2C, MMC/SD, PCI, RapidIO, SPI, TDM, and UART interfaces. Integrated Ethernet capabilities include eight 10/100Mbps ports and four 1Gbps ports, along with a single USB 2.0 port. The device incorporates a QUICC Engine for communications co-processing and supports DDR2, DDR3, and SDRAM controllers. This microprocessor is designed for operation within an extended temperature range of -40°C to 105°C (TA) and has I/O voltage compatibility across 1.0V, 1.5V, 1.8V, 2.5V, and 3.3V. Applications span telecommunications, networking infrastructure, and industrial control systems.
Additional Information
Series: MPC85xxRoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | 783-BBGA, FCBGA |
| Mounting Type | Surface Mount |
| Speed | 800MHz |
| Operating Temperature | -40°C ~ 105°C (TA) |
| Core Processor | PowerPC e500v2 |
| Voltage - I/O | 1.0V, 1.5V, 1.8V, 2.5V, 3.3V |
| Supplier Device Package | 783-FCPBGA (29x29) |
| Ethernet | 10/100Mbps (8), 1Gbps (4) |
| USB | USB 2.0 (1) |
| Number of Cores/Bus Width | 1 Core, 32-Bit |
| Co-Processors/DSP | Communications; QUICC Engine |
| RAM Controllers | DDR2, DDR3, SDRAM |
| Graphics Acceleration | No |
| Display & Interface Controllers | - |
| Security Features | - |
| SATA | - |
| Additional Interfaces | DUART, HSSI, I2C, MMC/SD, PCI, RapidIO, SPI, TDM, UART |
