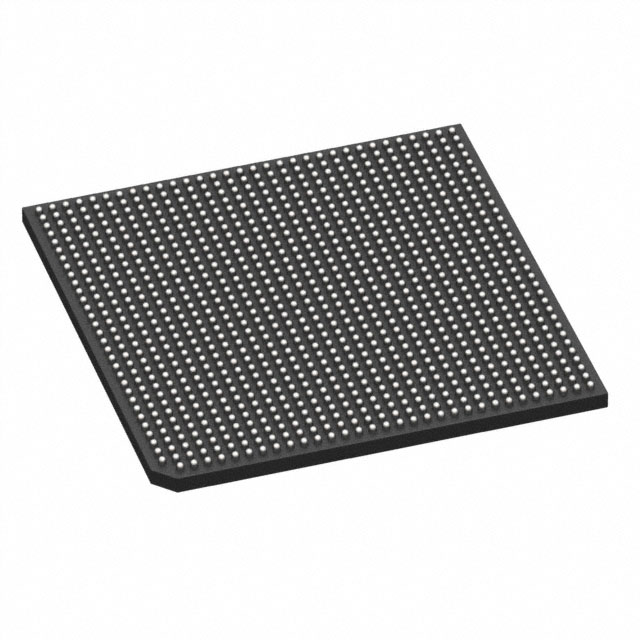

MPC8568EVTAQGG
IC MPU MPC85XX 1.0GHZ 1023FCPBGAManufacturer: NXP USA Inc.
Categories: Microprocessors
Quality Control: Learn More
NXP USA Inc. MPC8568EVTAQGG is a PowerPC e500v2 microprocessor featuring a single 32-bit core operating at 1.0GHz. This component is housed in a 1023-FCPBGA (33x33) package and supports surface mount installation. It includes a QUICC Engine for communications co-processing and an SEC for security co-processing, offering cryptography and random number generation capabilities. The MPC85xx series device provides multiple interfaces including DUART, HSSI, I2C, PCI, RapidIO, and UART, along with dual 10/100/1000Mbps Ethernet ports. Memory support encompasses DDR, DDR2, and SDRAM controllers. Operating temperature range is 0°C to 105°C (TA), with I/O voltage options of 1.8V, 2.5V, and 3.3V. This microprocessor is suitable for demanding applications in networking, telecommunications, and industrial automation.
Additional Information
Series: MPC85xxRoHS Status: RoHS non-compliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDownload Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | 1023-BBGA, FCBGA |
| Mounting Type | Surface Mount |
| Speed | 1.0GHz |
| Operating Temperature | 0°C ~ 105°C (TA) |
| Core Processor | PowerPC e500v2 |
| Voltage - I/O | 1.8V, 2.5V, 3.3V |
| Supplier Device Package | 1023-FCPBGA (33x33) |
| Ethernet | 10/100/1000Mbps (2) |
| USB | - |
| Number of Cores/Bus Width | 1 Core, 32-Bit |
| Co-Processors/DSP | Communications; QUICC Engine, Security; SEC |
| RAM Controllers | DDR, DDR2, SDRAM |
| Graphics Acceleration | No |
| Display & Interface Controllers | - |
| Security Features | Cryptography, Random Number Generator |
| SATA | - |
| Additional Interfaces | DUART, HSSI, I2C, PCI, RapidIO, UART |
