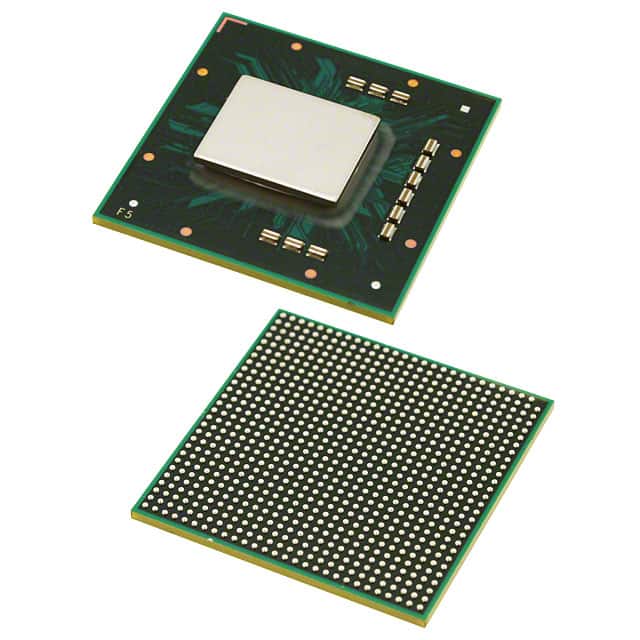

MPC8560VT833LC
IC MPU MPC85XX 833MHZ 783FCPBGAManufacturer: NXP USA Inc.
Categories: Microprocessors
Quality Control: Learn More
NXP USA Inc.'s MPC8560VT833LC is a 32-bit PowerPC e500 microprocessor featuring a single core operating at 833MHz. This MPC85xx series component is housed in a 783-FCPBGA package. It integrates a Communications Processor Module (CPM) for enhanced communications processing. Key interfaces include I2C, PCI, RapidIO, SPI, TDM, and UART. The device supports dual 10/100/1000Mbps Ethernet ports and memory controllers for DDR and SDRAM. Designed for surface mount applications, the MPC8560VT833LC operates within an ambient temperature range of 0°C to 105°C and features I/O voltages of 2.5V and 3.3V. This component is prevalent in networking infrastructure, telecommunications equipment, and industrial control systems.
Additional Information
Series: MPC85xxRoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TrayDownload Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | 783-BFBGA, FCBGA |
| Mounting Type | Surface Mount |
| Speed | 833MHz |
| Operating Temperature | 0°C ~ 105°C (TA) |
| Core Processor | PowerPC e500 |
| Voltage - I/O | 2.5V, 3.3V |
| Supplier Device Package | 783-FCPBGA (29x29) |
| Ethernet | 10/100/1000Mbps (2) |
| USB | - |
| Number of Cores/Bus Width | 1 Core, 32-Bit |
| Co-Processors/DSP | Communications; CPM |
| RAM Controllers | DDR, SDRAM |
| Graphics Acceleration | No |
| Display & Interface Controllers | - |
| Security Features | - |
| SATA | - |
| Additional Interfaces | I2C, PCI, RapidIO, SPI, TDM, UART |
