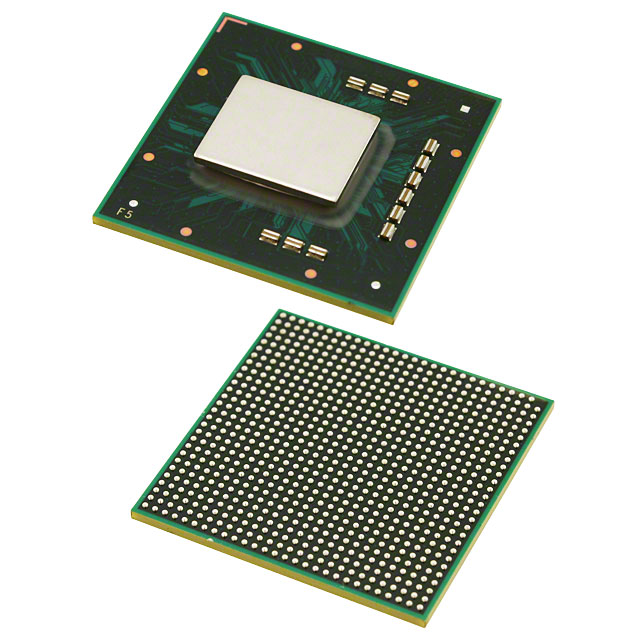

MPC8540CVT667JC
IC MPU MPC85XX 667MHZ 783FCPBGAManufacturer: NXP USA Inc.
Categories: Microprocessors
Quality Control: Learn More
NXP USA Inc. MPC85xx series microprocessor, part number MPC8540CVT667JC. This 32-bit PowerPC e500 core processor operates at 667MHz and is packaged in a 783-FCPBGA (29x29). It features a single core architecture and supports DDR and SDRAM memory controllers. Integrated peripherals include DUART, I2C, PCI, and RapidIO interfaces, along with dual 10/100/1000Mbps Ethernet controllers and a single 10/100Mbps Ethernet controller. The device is designed for surface mounting and operates across an industrial temperature range of -40°C to 105°C (TA). This component is utilized in telecommunications, industrial control, and networking applications.
Additional Information
Series: MPC85xxRoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TrayDownload Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | 783-BFBGA, FCBGA |
| Mounting Type | Surface Mount |
| Speed | 667MHz |
| Operating Temperature | -40°C ~ 105°C (TA) |
| Core Processor | PowerPC e500 |
| Voltage - I/O | 2.5V, 3.3V |
| Supplier Device Package | 783-FCPBGA (29x29) |
| Ethernet | 10/100Mbps (1), 10/100/1000Mbps (2) |
| USB | - |
| Number of Cores/Bus Width | 1 Core, 32-Bit |
| Co-Processors/DSP | - |
| RAM Controllers | DDR, SDRAM |
| Graphics Acceleration | No |
| Display & Interface Controllers | - |
| Security Features | - |
| SATA | - |
| Additional Interfaces | DUART, I2C, PCI, RapidIO |
