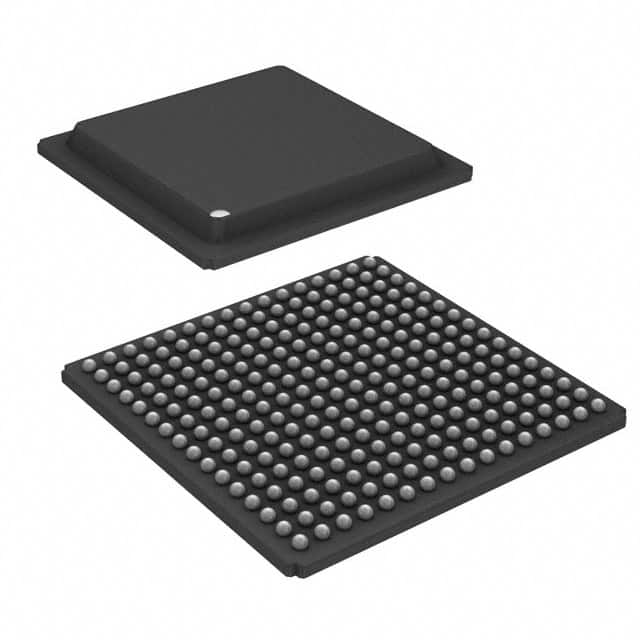

MPC852TVR100
IC MPU MPC8XX 100MHZ 256BGAManufacturer: NXP USA Inc.
Categories: Microprocessors
Quality Control: Learn More
NXP USA Inc.'s MPC8xx series microprocessor, part number MPC852TVR100, is a 32-bit, single-core processor operating at 100MHz. This component features a 256-PBGA (23x23) package for surface mounting and supports DRAM. Integrated co-processors include a Communications Processor Module (CPM). Additional interfaces offered are HDLC/SDLC, PCMCIA, SPI, and UART, along with a single 10Mbps Ethernet port. The device operates within an ambient temperature range of 0°C to 95°C and has I/O voltages of 3.3V. This microprocessor is commonly found in networking infrastructure and industrial control systems.
Additional Information
Series: MPC8xxRoHS Status: RoHS non-compliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TrayDownload Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | 256-BBGA |
| Mounting Type | Surface Mount |
| Speed | 100MHz |
| Operating Temperature | 0°C ~ 95°C (TA) |
| Core Processor | MPC8xx |
| Voltage - I/O | 3.3V |
| Supplier Device Package | 256-PBGA (23x23) |
| Ethernet | 10Mbps (1) |
| USB | - |
| Number of Cores/Bus Width | 1 Core, 32-Bit |
| Co-Processors/DSP | Communications; CPM |
| RAM Controllers | DRAM |
| Graphics Acceleration | No |
| Display & Interface Controllers | - |
| Security Features | - |
| SATA | - |
| Additional Interfaces | HDLC/SDLC, PCMCIA, SPI, UART |
