MPC852TCZT50A
IC MPU MPC8XX 50MHZ 256BGAManufacturer: NXP USA Inc.
Categories: Microprocessors
Quality Control: Learn More

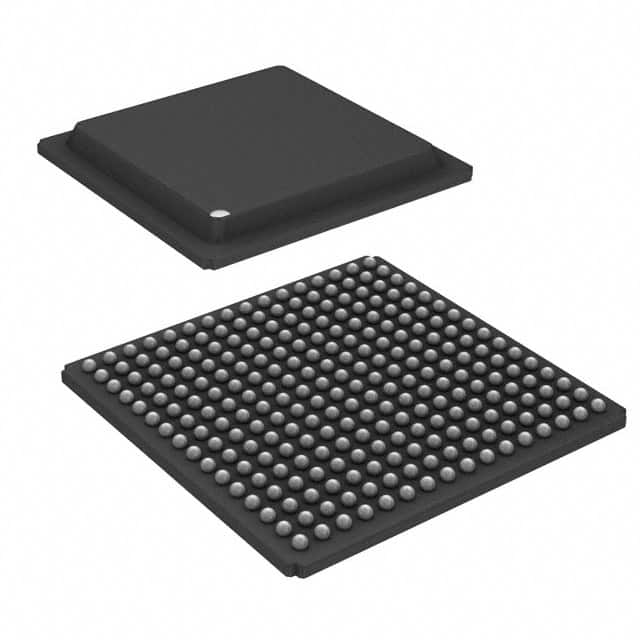

NXP USA Inc. MPC8xx series microprocessor, part number MPC852TCZT50A, is a 32-bit, single-core processor operating at 50MHz. This component features a Communications Processor Module (CPM) for enhanced data handling. It offers a robust set of interfaces including HDLC/SDLC, PCMCIA, SPI, and UART, alongside a 10Mbps Ethernet port. The processor supports DRAM for memory expansion and is presented in a 256-PBGA (23x23) package suitable for surface mounting. Designed for demanding applications, this device operates within an industrial temperature range of -40°C to 100°C (TA). Its architecture and peripheral set make it well-suited for networking infrastructure, telecommunications equipment, and industrial control systems.
Additional Information
Series: MPC8xxRoHS Status: RoHS non-compliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TrayDownload Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | 256-BBGA |
| Mounting Type | Surface Mount |
| Speed | 50MHz |
| Operating Temperature | -40°C ~ 100°C (TA) |
| Core Processor | MPC8xx |
| Voltage - I/O | 3.3V |
| Supplier Device Package | 256-PBGA (23x23) |
| Ethernet | 10Mbps (1) |
| USB | - |
| Number of Cores/Bus Width | 1 Core, 32-Bit |
| Co-Processors/DSP | Communications; CPM |
| RAM Controllers | DRAM |
| Graphics Acceleration | No |
| Display & Interface Controllers | - |
| Security Features | - |
| SATA | - |
| Additional Interfaces | HDLC/SDLC, PCMCIA, SPI, UART |
