MPC850VR50BU
IC MPU MPC8XX 50MHZ 256BGAManufacturer: NXP USA Inc.
Categories: Microprocessors
Quality Control: Learn More

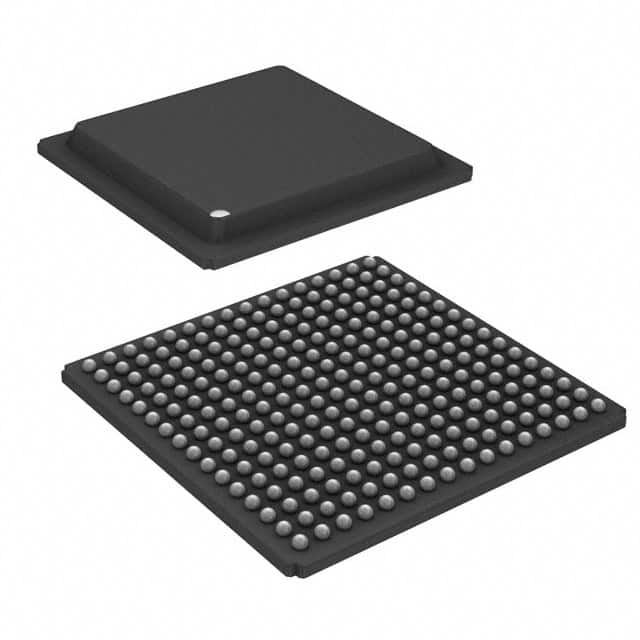

NXP USA Inc. MPC8xx Series MPC850VR50BU is a 32-bit, single-core microprocessor operating at 50MHz. This component features a Communication Processor Module (CPM) for enhanced communications processing. It offers a comprehensive set of interfaces including HDLC/SDLC, I2C, IrDA, PCMCIA-ATA, TDM, and UART/USART. Connectivity includes a single 10Mbps Ethernet port and a USB 1.x interface. The microprocessor supports DRAM memory controllers and is housed in a 256-PBGA (23x23) package designed for surface mounting. The operating temperature range is 0°C to 95°C (TA) and I/O voltage is 3.3V. This device is commonly found in networking equipment and industrial automation systems.
Additional Information
Series: MPC8xxRoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TrayDownload Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | 256-BBGA |
| Mounting Type | Surface Mount |
| Speed | 50MHz |
| Operating Temperature | 0°C ~ 95°C (TA) |
| Core Processor | MPC8xx |
| Voltage - I/O | 3.3V |
| Supplier Device Package | 256-PBGA (23x23) |
| Ethernet | 10Mbps (1) |
| USB | USB 1.x (1) |
| Number of Cores/Bus Width | 1 Core, 32-Bit |
| Co-Processors/DSP | Communications; CPM |
| RAM Controllers | DRAM |
| Graphics Acceleration | No |
| Display & Interface Controllers | - |
| Security Features | - |
| SATA | - |
| Additional Interfaces | HDLC/SDLC, I2C, IrDA, PCMCIA-ATA, TDM, UART/USART |
