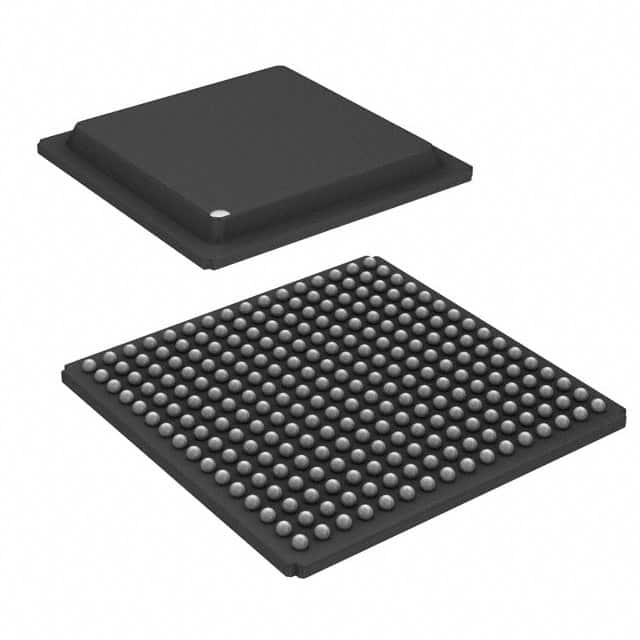

MPC850DEVR50BU
IC MPU MPC8XX 50MHZ 256BGAManufacturer: NXP USA Inc.
Categories: Microprocessors
Quality Control: Learn More
NXP USA Inc. MPC8xx series microprocessor MPC850DEVR50BU. This 32-bit, single-core processor operates at 50MHz, featuring a 256-PBGA (23x23) package. The component includes a Communications Processor Module (CPM) for co-processing and DSP functions. Integrated interfaces support HDLC/SDLC, I2C, IrDA, PCMCIA-ATA, TDM, and UART/USART. It also offers one 10Mbps Ethernet port and one USB 1.x port. The device includes DRAM controllers and operates with 3.3V I/O voltage. Suitable for networking, telecommunications, and industrial automation applications.
Additional Information
Series: MPC8xxRoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDownload Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | 256-BBGA |
| Mounting Type | Surface Mount |
| Speed | 50MHz |
| Operating Temperature | 0°C ~ 95°C (TA) |
| Core Processor | MPC8xx |
| Voltage - I/O | 3.3V |
| Supplier Device Package | 256-PBGA (23x23) |
| Ethernet | 10Mbps (1) |
| USB | USB 1.x (1) |
| Number of Cores/Bus Width | 1 Core, 32-Bit |
| Co-Processors/DSP | Communications; CPM |
| RAM Controllers | DRAM |
| Graphics Acceleration | No |
| Display & Interface Controllers | - |
| Security Features | - |
| SATA | - |
| Additional Interfaces | HDLC/SDLC, I2C, IrDA, PCMCIA-ATA, TDM, UART/USART |
