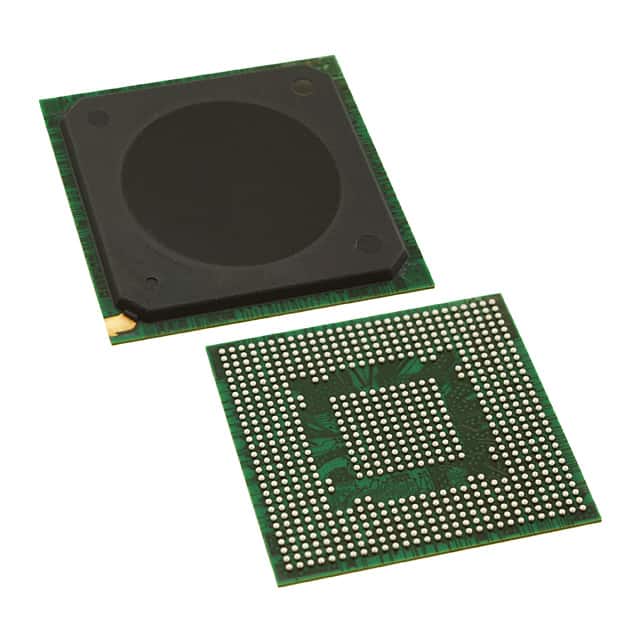

MPC8379EVRALGA
IC MPU MPC83XX 667MHZ PBGA689Manufacturer: NXP USA Inc.
Categories: Microprocessors
Quality Control: Learn More
NXP USA Inc. MPC8379EVRALGA is a PowerPC e300c4s core, 32-bit microprocessor, operating at 667MHz. This MPC83xx series device features a single core and is housed in a 689-TEPBGA II (31x31) package. It supports DDR and DDR2 memory controllers and includes multiple high-speed interfaces such as dual 10/100/1000Mbps Ethernet ports, four SATA 3Gbps ports, and a USB 2.0 port with integrated PHY. Additional interfaces include DUART, I2C, MMC/SD, and SPI. The MPC8379EVRALGA incorporates a SEC 3.0 security co-processor with cryptography and random number generator capabilities. It is designed for surface mount applications and operates within an ambient temperature range of 0°C to 125°C, with I/O voltage support for 1.8V, 2.5V, and 3.3V. This component is commonly utilized in networking infrastructure, industrial control systems, and embedded computing applications.
Additional Information
Series: MPC83xxRoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | 689-BBGA Exposed Pad |
| Mounting Type | Surface Mount |
| Speed | 667MHz |
| Operating Temperature | 0°C ~ 125°C (TA) |
| Core Processor | PowerPC e300c4s |
| Voltage - I/O | 1.8V, 2.5V, 3.3V |
| Supplier Device Package | 689-TEPBGA II (31x31) |
| Ethernet | 10/100/1000Mbps (2) |
| USB | USB 2.0 + PHY (1) |
| Number of Cores/Bus Width | 1 Core, 32-Bit |
| Co-Processors/DSP | Security; SEC 3.0 |
| RAM Controllers | DDR, DDR2 |
| Graphics Acceleration | No |
| Display & Interface Controllers | - |
| Security Features | Cryptography, Random Number Generator |
| SATA | SATA 3Gbps (4) |
| Additional Interfaces | DUART, I2C, MMC/SD, PCI, SPI |
