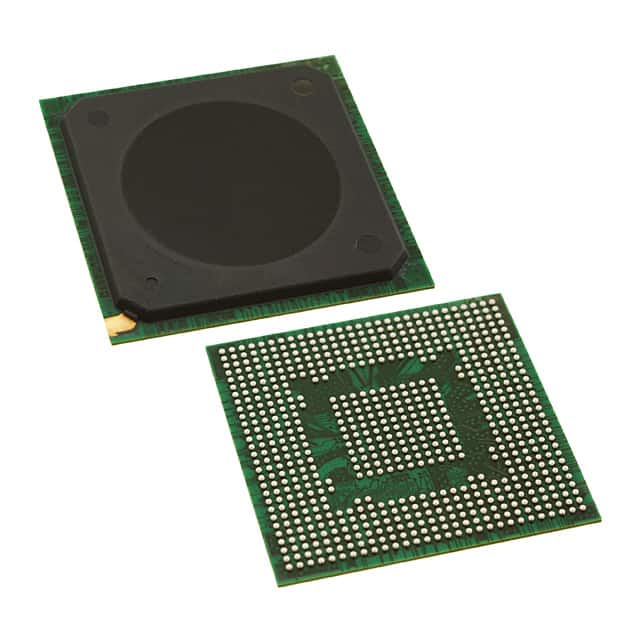

MPC8378ECVRANG
IC MPU MPC83XX 800MHZ PBGA689Manufacturer: NXP USA Inc.
Categories: Microprocessors
Quality Control: Learn More
NXP USA Inc. MPC83xx Series MPC8378ECVRANG is a 32-bit PowerPC e300c4s microprocessor featuring a single core operating at 800MHz. This component, packaged in a 689-TEPBGA II (31x31) tray, offers extensive connectivity with dual 10/100/1000Mbps Ethernet ports, USB 2.0 with integrated PHY, DUART, I2C, MMC/SD, and SPI interfaces. It supports DDR and DDR2 RAM controllers and includes a SEC 3.0 co-processor for enhanced security functions such as cryptography and random number generation. The operating temperature range is -40°C to 125°C (TA). This device is suitable for applications in networking, industrial automation, and telecommunications.
Additional Information
Series: MPC83xxRoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | 689-BBGA Exposed Pad |
| Mounting Type | Surface Mount |
| Speed | 800MHz |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Core Processor | PowerPC e300c4s |
| Voltage - I/O | 1.8V, 2.5V, 3.3V |
| Supplier Device Package | 689-TEPBGA II (31x31) |
| Ethernet | 10/100/1000Mbps (2) |
| USB | USB 2.0 + PHY (1) |
| Number of Cores/Bus Width | 1 Core, 32-Bit |
| Co-Processors/DSP | Security; SEC 3.0 |
| RAM Controllers | DDR, DDR2 |
| Graphics Acceleration | No |
| Display & Interface Controllers | - |
| Security Features | Cryptography, Random Number Generator |
| SATA | - |
| Additional Interfaces | DUART, I2C, MMC/SD, PCI, SPI |
