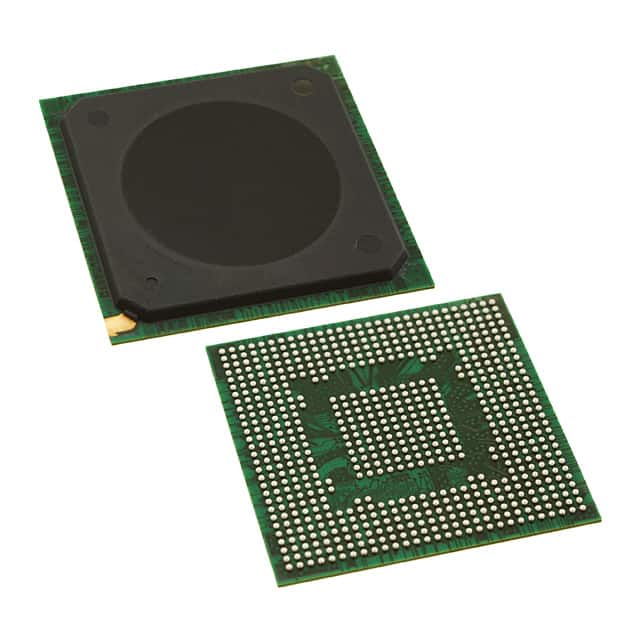

MPC8378CVRAGDA
IC MPU MPC83XX 400MHZ PBGA689Manufacturer: NXP USA Inc.
Categories: Microprocessors
Quality Control: Learn More
NXP USA Inc. MPC8378CVRAGDA is a 32-bit PowerPC e300c4s microprocessor from the MPC83xx series. This single-core processor operates at 400MHz and is housed in a 689-TEPBGA II (31x31) package. It features dual 10/100/1000Mbps Ethernet interfaces, a USB 2.0 port with an integrated PHY, and support for I2C, MMC/SD, SPI, and DUART. The MPC8378CVRAGDA includes DDR and DDR2 RAM controllers and supports I/O voltages of 1.8V, 2.5V, and 3.3V. This component is suitable for applications in networking, industrial control, and embedded systems. Its operating temperature range is -40°C to 125°C.
Additional Information
Series: MPC83xxRoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | 689-BBGA Exposed Pad |
| Mounting Type | Surface Mount |
| Speed | 400MHz |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Core Processor | PowerPC e300c4s |
| Voltage - I/O | 1.8V, 2.5V, 3.3V |
| Supplier Device Package | 689-TEPBGA II (31x31) |
| Ethernet | 10/100/1000Mbps (2) |
| USB | USB 2.0 + PHY (1) |
| Number of Cores/Bus Width | 1 Core, 32-Bit |
| Co-Processors/DSP | - |
| RAM Controllers | DDR, DDR2 |
| Graphics Acceleration | No |
| Display & Interface Controllers | - |
| Security Features | - |
| SATA | - |
| Additional Interfaces | DUART, I2C, MMC/SD, PCI, SPI |
Request a Quote
