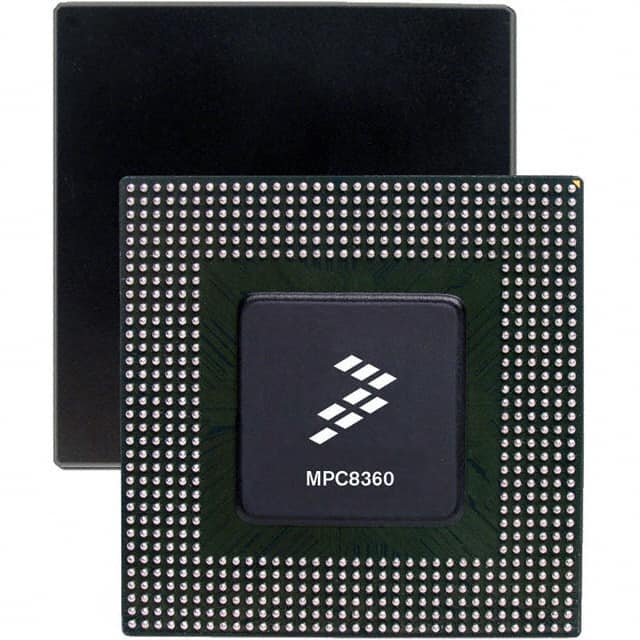

MPC8360VVAJDGA
IC MPU MPC83XX 533MHZ 740TBGAManufacturer: NXP USA Inc.
Categories: Microprocessors
Quality Control: Learn More
NXP USA Inc. MPC83xx Series MPC8360VVAJDGA is a 32-bit PowerPC e300 core microprocessor operating at 533MHz. This component features a single core and is housed in a 740-TBGA (37.5x37.5) package. Integrated peripherals include DUART, HDLC, I2C, PCI, SPI, and UART interfaces, alongside a 10/100/1000Mbps Ethernet port and USB 1.x support. The device incorporates a Communications Co-Processor with the QUICC Engine for enhanced data handling. RAM controllers for DDR and DDR2 are present. The operating temperature range is 0°C to 105°C (TA), with I/O voltage options of 1.8V, 2.5V, and 3.3V. This microprocessor is suitable for applications in networking, industrial control, and telecommunications.
Additional Information
Series: MPC83xxRoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TrayDownload Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | 740-LBGA |
| Mounting Type | Surface Mount |
| Speed | 533MHz |
| Operating Temperature | 0°C ~ 105°C (TA) |
| Core Processor | PowerPC e300 |
| Voltage - I/O | 1.8V, 2.5V, 3.3V |
| Supplier Device Package | 740-TBGA (37.5x37.5) |
| Ethernet | 10/100/1000Mbps (1) |
| USB | USB 1.x (1) |
| Number of Cores/Bus Width | 1 Core, 32-Bit |
| Co-Processors/DSP | Communications; QUICC Engine |
| RAM Controllers | DDR, DDR2 |
| Graphics Acceleration | No |
| Display & Interface Controllers | - |
| Security Features | - |
| SATA | - |
| Additional Interfaces | DUART, HDLC, I2C, PCI, SPI, UART |
