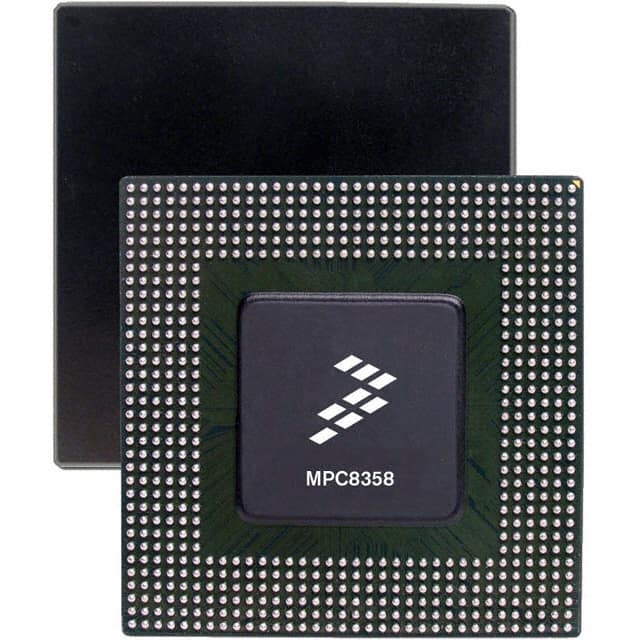

MPC8358CVRADDDA
IC MPU MPC83XX 266MHZ 668BGAManufacturer: NXP USA Inc.
Categories: Microprocessors
Quality Control: Learn More
NXP USA Inc. MPC83xx series MPC8358CVRADDDA is a PowerPC e300 core microprocessor, featuring a 32-bit architecture running at 266MHz. This device offers a single core and supports DDR and DDR2 RAM controllers. Integrated peripherals include DUART, HDLC, I2C, SPI, and UART interfaces, along with a 10/100/1000Mbps Ethernet port and a USB 1.x interface. The QUICC Engine co-processor provides enhanced communications capabilities. Supplied in a 668-PBGA-PGE (29x29) package for surface mounting, it operates across a temperature range of -40°C to 105°C (TA) and supports I/O voltages of 1.8V, 2.5V, and 3.3V. This component is commonly utilized in networking infrastructure, industrial control systems, and embedded computing applications.
Additional Information
Series: MPC83xxRoHS Status: ROHS3 CompliantManufacturer Lead Time: 52 week(s)Product Status: ActivePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | 668-BBGA Exposed Pad |
| Mounting Type | Surface Mount |
| Speed | 266MHz |
| Operating Temperature | -40°C ~ 105°C (TA) |
| Core Processor | PowerPC e300 |
| Voltage - I/O | 1.8V, 2.5V, 3.3V |
| Supplier Device Package | 668-PBGA-PGE (29x29) |
| Ethernet | 10/100/1000Mbps (1) |
| USB | USB 1.x (1) |
| Number of Cores/Bus Width | 1 Core, 32-Bit |
| Co-Processors/DSP | Communications; QUICC Engine |
| RAM Controllers | DDR, DDR2 |
| Graphics Acceleration | No |
| Display & Interface Controllers | - |
| Security Features | - |
| SATA | - |
| Additional Interfaces | DUART, HDLC, I2C, PCI, SPI, UART |
