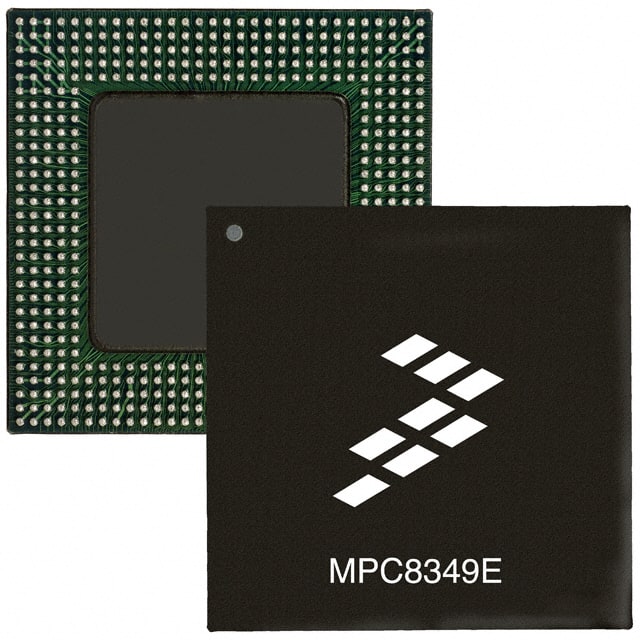

MPC8349EVVALFB
IC MPU MPC83XX 667MHZ 672LBGAManufacturer: NXP USA Inc.
Categories: Microprocessors
Quality Control: Learn More
The NXP USA Inc. MPC8349EVVALFB is a 32-bit PowerPC e300 core microprocessor operating at 667MHz. This component features a single core and is housed in a 672-LBGA (35x35) package, suitable for surface mount applications. The MPC83xx series device offers extensive connectivity options including dual 10/100/1000Mbps Ethernet ports, two USB 2.0 ports with PHY, DUART, I2C, SPI, and PCI interfaces. Memory support includes DDR and DDR2 RAM controllers. Security capabilities are enhanced with an integrated Security Engine (SEC) co-processor, providing hardware acceleration for cryptography and a random number generator. The operating temperature range is from 0°C to 105°C (TA). This microprocessor is commonly utilized in networking infrastructure, industrial automation, and telecommunications equipment.
Additional Information
Series: MPC83xxRoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | 672-LBGA |
| Mounting Type | Surface Mount |
| Speed | 667MHz |
| Operating Temperature | 0°C ~ 105°C (TA) |
| Core Processor | PowerPC e300 |
| Voltage - I/O | 1.8V, 2.5V, 3.3V |
| Supplier Device Package | 672-LBGA (35x35) |
| Ethernet | 10/100/1000Mbps (2) |
| USB | USB 2.0 + PHY (2) |
| Number of Cores/Bus Width | 1 Core, 32-Bit |
| Co-Processors/DSP | Security; SEC |
| RAM Controllers | DDR, DDR2 |
| Graphics Acceleration | No |
| Display & Interface Controllers | - |
| Security Features | Cryptography, Random Number Generator |
| SATA | - |
| Additional Interfaces | DUART, I2C, PCI, SPI |
Request a Quote
