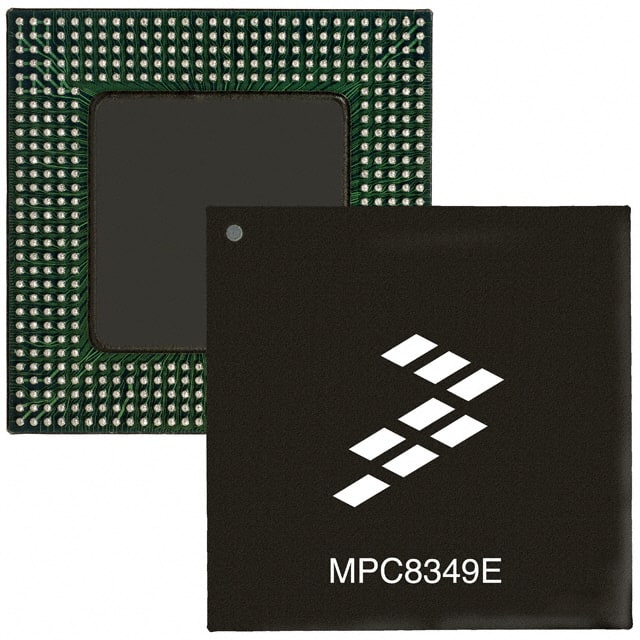

MPC8349EVVAJDB
IC MPU MPC83XX 533MHZ 672LBGAManufacturer: NXP USA Inc.
Categories: Microprocessors
Quality Control: Learn More
NXP USA Inc. MPC83xx family PowerPC e300 microprocessor, part number MPC8349EVVAJDB. This 32-bit, single-core processor operates at 533MHz and is housed in a 672-LBGA (35x35mm) package. Key features include dual 10/100/1000Mbps Ethernet controllers, two USB 2.0 ports with PHY, and a dedicated Security Engine (SEC) for cryptographic acceleration and random number generation. It also supports DDR and DDR2 RAM controllers and offers multiple interface options including DUART, I2C, PCI, and SPI. This device is suitable for surface mount applications with I/O voltage support for 1.8V, 2.5V, and 3.3V. Typical applications span networking infrastructure, industrial control systems, and embedded computing platforms.
Additional Information
Series: MPC83xxRoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | 672-LBGA |
| Mounting Type | Surface Mount |
| Speed | 533MHz |
| Operating Temperature | 0°C ~ 105°C (TA) |
| Core Processor | PowerPC e300 |
| Voltage - I/O | 1.8V, 2.5V, 3.3V |
| Supplier Device Package | 672-LBGA (35x35) |
| Ethernet | 10/100/1000Mbps (2) |
| USB | USB 2.0 + PHY (2) |
| Number of Cores/Bus Width | 1 Core, 32-Bit |
| Co-Processors/DSP | Security; SEC |
| RAM Controllers | DDR, DDR2 |
| Graphics Acceleration | No |
| Display & Interface Controllers | - |
| Security Features | Cryptography, Random Number Generator |
| SATA | - |
| Additional Interfaces | DUART, I2C, PCI, SPI |
Request a Quote
