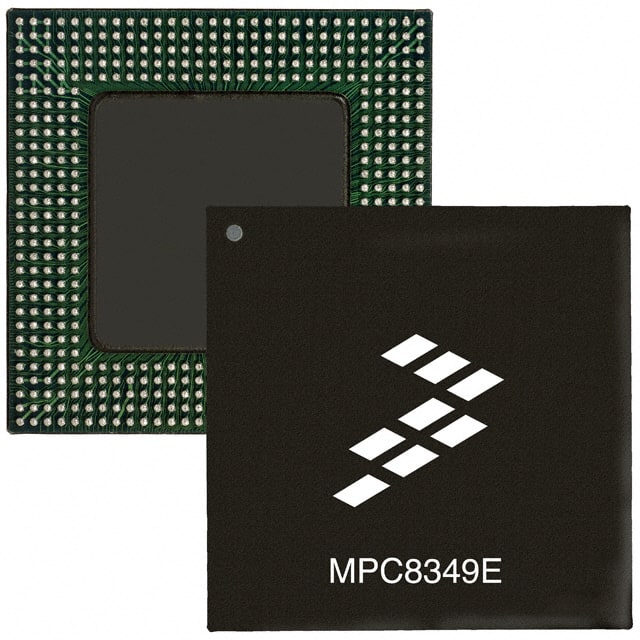

MPC8349ECVVAJDB
IC MPU MPC83XX 533MHZ 672LBGAManufacturer: NXP USA Inc.
Categories: Microprocessors
Quality Control: Learn More
NXP USA Inc. MPC83xx Series MPC8349ECVVAJDB is a 32-bit PowerPC e300 core microprocessor operating at 533MHz. This component features a 672-LBGA (35x35) surface mount package. Key interfaces include dual DUART, I2C, PCI, SPI, dual 10/100/1000Mbps Ethernet ports, and dual USB 2.0 with PHY. The processor incorporates a Security Engine (SEC) co-processor for cryptographic operations and a random number generator, along with support for DDR and DDR2 RAM controllers. Designed for operation within a -40°C to 105°C ambient temperature range, this device is suitable for demanding applications in networking infrastructure, industrial control, and embedded systems.
Additional Information
Series: MPC83xxRoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | 672-LBGA |
| Mounting Type | Surface Mount |
| Speed | 533MHz |
| Operating Temperature | -40°C ~ 105°C (TA) |
| Core Processor | PowerPC e300 |
| Voltage - I/O | 1.8V, 2.5V, 3.3V |
| Supplier Device Package | 672-LBGA (35x35) |
| Ethernet | 10/100/1000Mbps (2) |
| USB | USB 2.0 + PHY (2) |
| Number of Cores/Bus Width | 1 Core, 32-Bit |
| Co-Processors/DSP | Security; SEC |
| RAM Controllers | DDR, DDR2 |
| Graphics Acceleration | No |
| Display & Interface Controllers | - |
| Security Features | Cryptography, Random Number Generator |
| SATA | - |
| Additional Interfaces | DUART, I2C, PCI, SPI |
