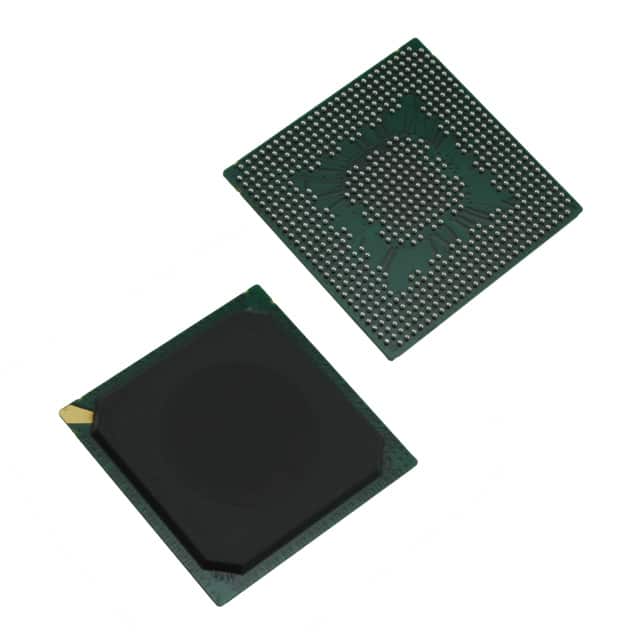

MPC8347VRAGD
IC MPU MPC83XX 400MHZ 620HBGAManufacturer: NXP USA Inc.
Categories: Microprocessors
Quality Control: Learn More
NXP USA Inc. MPC83xx Series MPC8347VRAGD is a 32-bit PowerPC e300 core microprocessor operating at 400MHz. This component features a single core and is housed in a 620-HBGA (29x29) package with an exposed pad, suitable for surface mounting. Key interfaces include DUART, I2C, PCI, SPI, dual 10/100/1000Mbps Ethernet ports, and dual USB 2.0 with PHY. The device supports DDR RAM controllers and offers I/O voltage flexibility with 2.5V and 3.3V options. Operating within an ambient temperature range of 0°C to 105°C, this microprocessor finds application in networking, industrial automation, and embedded computing systems.
Additional Information
Series: MPC83xxRoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TrayDownload Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | 620-BBGA Exposed Pad |
| Mounting Type | Surface Mount |
| Speed | 400MHz |
| Operating Temperature | 0°C ~ 105°C (TA) |
| Core Processor | PowerPC e300 |
| Voltage - I/O | 2.5V, 3.3V |
| Supplier Device Package | 620-HBGA (29x29) |
| Ethernet | 10/100/1000Mbps (2) |
| USB | USB 2.0 + PHY (2) |
| Number of Cores/Bus Width | 1 Core, 32-Bit |
| Co-Processors/DSP | - |
| RAM Controllers | DDR |
| Graphics Acceleration | No |
| Display & Interface Controllers | - |
| Security Features | - |
| SATA | - |
| Additional Interfaces | DUART, I2C, PCI, SPI |
