MPC8343EVRADD
IC MPU MPC83XX 266MHZ 620HBGAManufacturer: NXP USA Inc.
Categories: Microprocessors
Quality Control: Learn More

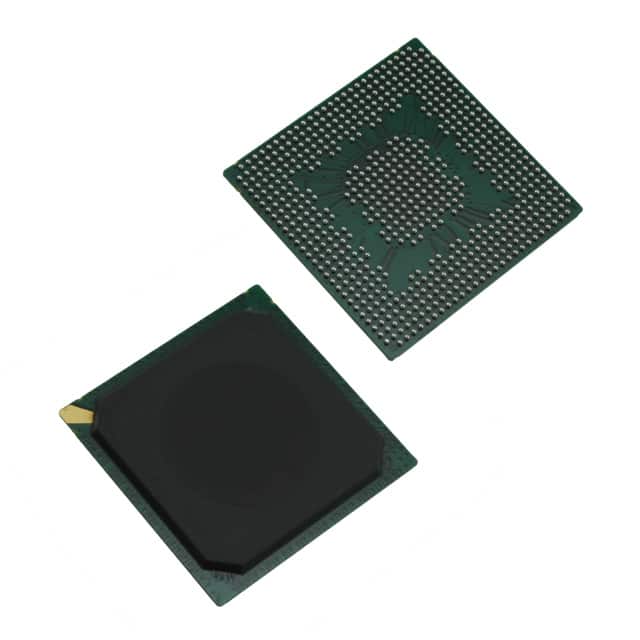

NXP USA Inc. MPC83xx Series MPC8343EVRADD is a 32-bit PowerPC e300 microprocessor featuring a single core operating at 266MHz. This component is housed in a 620-HBGA (29x29) package and is designed for surface mount applications. Key interfaces include multiple Gigabit Ethernet ports, two USB 2.0 ports with integrated PHY, DUART, I2C, and SPI. The device incorporates a Security Engine (SEC) co-processor for cryptographic acceleration and random number generation. It supports DDR and DDR2 memory controllers and operates within an ambient temperature range of 0°C to 105°C. I/O voltage support includes 1.8V, 2.5V, and 3.3V. This microprocessor is utilized in networking, telecommunications, and industrial automation applications.
Additional Information
Series: MPC83xxRoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TrayDownload Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | 620-BBGA Exposed Pad |
| Mounting Type | Surface Mount |
| Speed | 266MHz |
| Operating Temperature | 0°C ~ 105°C (TA) |
| Core Processor | PowerPC e300 |
| Voltage - I/O | 1.8V, 2.5V, 3.3V |
| Supplier Device Package | 620-HBGA (29x29) |
| Ethernet | 10/100/1000Mbps (3) |
| USB | USB 2.0 + PHY (2) |
| Number of Cores/Bus Width | 1 Core, 32-Bit |
| Co-Processors/DSP | Security; SEC |
| RAM Controllers | DDR, DDR2 |
| Graphics Acceleration | No |
| Display & Interface Controllers | - |
| Security Features | Cryptography, Random Number Generator |
| SATA | - |
| Additional Interfaces | DUART, I2C, PCI, SPI |
