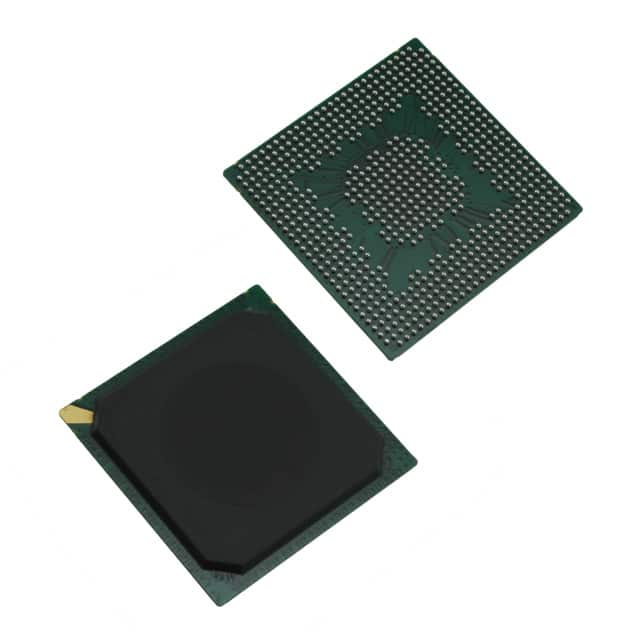

MPC8343CZQADDB
IC MPU MPC83XX 266MHZ 620HBGAManufacturer: NXP USA Inc.
Categories: Microprocessors
Quality Control: Learn More
The NXP USA Inc. MPC83xx series microprocessor, part number MPC8343CZQADDB, features a PowerPC e300 core with a 32-bit architecture operating at 266MHz. This single-core unit is housed in a 620-HBGA (29x29) package with an exposed pad, suitable for surface mounting. It offers extensive connectivity options including three 10/100/1000Mbps Ethernet ports, two USB 2.0 ports with PHY, DUART, I2C, and PCI interfaces. The component supports DDR and DDR2 memory controllers. Operational temperature range is -40°C to 105°C (TA), with I/O voltage support for 1.8V, 2.5V, and 3.3V. This microprocessor is commonly utilized in networking infrastructure, industrial control systems, and embedded computing applications.
Additional Information
Series: MPC83xxRoHS Status: RoHS non-compliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TrayDownload Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | 620-BBGA Exposed Pad |
| Mounting Type | Surface Mount |
| Speed | 266MHz |
| Operating Temperature | -40°C ~ 105°C (TA) |
| Core Processor | PowerPC e300 |
| Voltage - I/O | 1.8V, 2.5V, 3.3V |
| Supplier Device Package | 620-HBGA (29x29) |
| Ethernet | 10/100/1000Mbps (3) |
| USB | USB 2.0 + PHY (2) |
| Number of Cores/Bus Width | 1 Core, 32-Bit |
| Co-Processors/DSP | - |
| RAM Controllers | DDR, DDR2 |
| Graphics Acceleration | No |
| Display & Interface Controllers | - |
| Security Features | - |
| SATA | - |
| Additional Interfaces | DUART, I2C, PCI, SPI |
