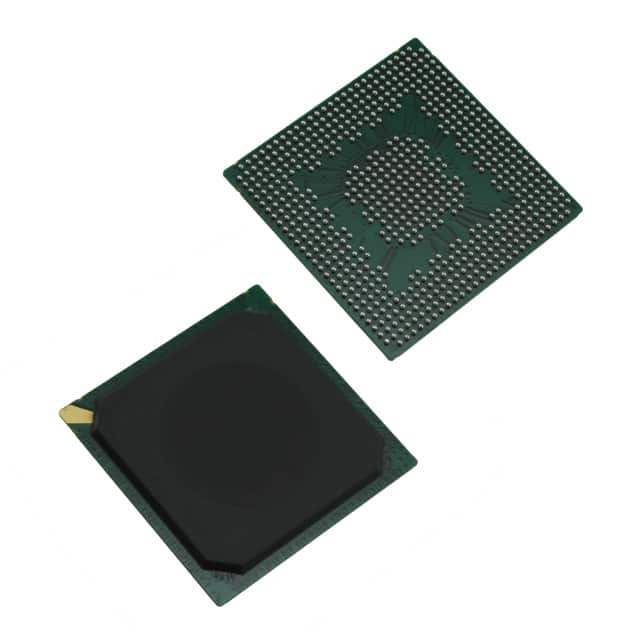

MPC8343CZQADD
IC MPU MPC83XX 266MHZ 620HBGAManufacturer: NXP USA Inc.
Categories: Microprocessors
Quality Control: Learn More
The NXP USA Inc. MPC8343CZQADD is a 32-bit PowerPC e300 core microprocessor from the MPC83xx series. This single-core component operates at a frequency of 266MHz and is housed in a 620-HBGA (29x29) package. It supports DDR and DDR2 memory controllers and features multiple interfaces including DUART, I2C, SPI, and PCI. Network connectivity is provided by three integrated 10/100/1000Mbps Ethernet controllers, and it includes two USB 2.0 ports with integrated PHYs. The device supports I/O voltages of 1.8V, 2.5V, and 3.3V, and operates within an ambient temperature range of -40°C to 105°C. This microprocessor is commonly utilized in networking, industrial automation, and embedded computing applications.
Additional Information
Series: MPC83xxRoHS Status: RoHS non-compliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TrayDownload Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | 620-BBGA Exposed Pad |
| Mounting Type | Surface Mount |
| Speed | 266MHz |
| Operating Temperature | -40°C ~ 105°C (TA) |
| Core Processor | PowerPC e300 |
| Voltage - I/O | 1.8V, 2.5V, 3.3V |
| Supplier Device Package | 620-HBGA (29x29) |
| Ethernet | 10/100/1000Mbps (3) |
| USB | USB 2.0 + PHY (2) |
| Number of Cores/Bus Width | 1 Core, 32-Bit |
| Co-Processors/DSP | - |
| RAM Controllers | DDR, DDR2 |
| Graphics Acceleration | No |
| Display & Interface Controllers | - |
| Security Features | - |
| SATA | - |
| Additional Interfaces | DUART, I2C, PCI, SPI |
Request a Quote
