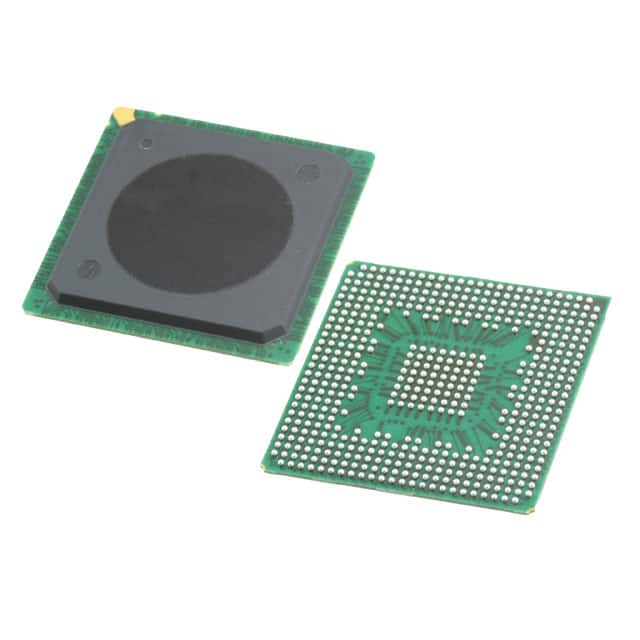

MPC8321VRADDC
IC MPU MPC83XX 266MHZ PBGA516Manufacturer: NXP USA Inc.
Categories: Microprocessors
Quality Control: Learn More
NXP USA Inc. MPC83xx Series MPC8321VRADDC is a PowerPC e300c2 microprocessor featuring a 32-bit, single-core architecture operating at 266MHz. This device is housed in a 516-PBGA (27x27) package, suitable for surface mount applications. It integrates a QUICC Engine for communications co-processing and supports multiple Ethernet interfaces (10/100Mbps). Additional interfaces include DUART, I2C, PCI, SPI, TDM, and UART, alongside USB 2.0 connectivity. Memory controllers for DDR and DDR2 are also on-chip. The MPC8321VRADDC operates within an ambient temperature range of 0°C to 105°C and supports I/O voltages of 1.8V, 2.5V, and 3.3V. This component finds application in networking, industrial control, and embedded systems.
Additional Information
Series: MPC83xxRoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | 516-BBGA |
| Mounting Type | Surface Mount |
| Speed | 266MHz |
| Operating Temperature | 0°C ~ 105°C (TA) |
| Core Processor | PowerPC e300c2 |
| Voltage - I/O | 1.8V, 2.5V, 3.3V |
| Supplier Device Package | 516-PBGA (27x27) |
| Ethernet | 10/100Mbps (3) |
| USB | USB 2.0 (1) |
| Number of Cores/Bus Width | 1 Core, 32-Bit |
| Co-Processors/DSP | Communications; QUICC Engine |
| RAM Controllers | DDR, DDR2 |
| Graphics Acceleration | No |
| Display & Interface Controllers | - |
| Security Features | - |
| SATA | - |
| Additional Interfaces | DUART, I2C, PCI, SPI, TDM, UART |
