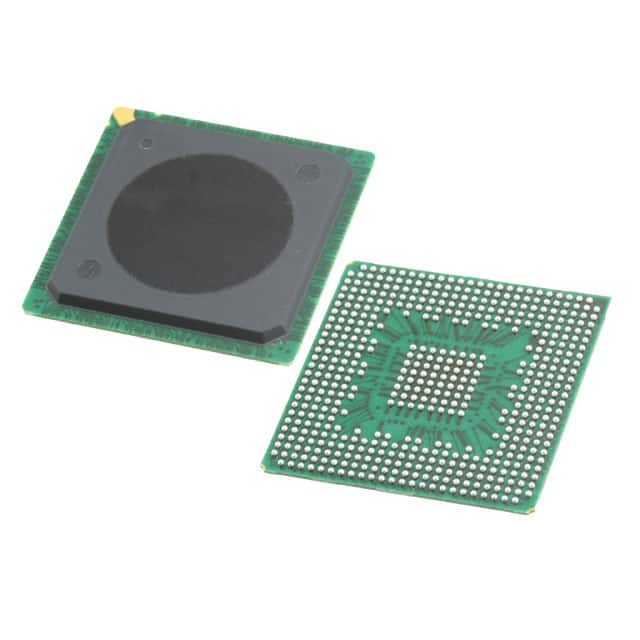

MPC8321ECZQADDC
IC MPU MPC83XX 266MHZ PBGA516Manufacturer: NXP USA Inc.
Categories: Microprocessors
Quality Control: Learn More
The NXP USA Inc. MPC83xx series PowerPC® e300c2 microprocessor, part number MPC8321ECZQADDC, is a 32-bit, single-core processor operating at 266MHz. This component features a 516-PBGA (27x27) package and supports surface mount installation. Key interfaces include DUART, I2C, PCI, SPI, TDM, and UART, alongside three 10/100Mbps Ethernet ports and a USB 2.0 interface. It integrates a QUICC Engine for communications and SEC 2.2 for security, including cryptography acceleration. Memory controllers support DDR and DDR2. The device operates across an industrial temperature range of -40°C to 105°C and utilizes I/O voltages of 1.8V, 2.5V, and 3.3V. This microprocessor is commonly employed in networking infrastructure, industrial control systems, and embedded computing applications.
Additional Information
Series: MPC83xxRoHS Status: RoHS non-compliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | 516-BBGA |
| Mounting Type | Surface Mount |
| Speed | 266MHz |
| Operating Temperature | -40°C ~ 105°C (TA) |
| Core Processor | PowerPC e300c2 |
| Voltage - I/O | 1.8V, 2.5V, 3.3V |
| Supplier Device Package | 516-PBGA (27x27) |
| Ethernet | 10/100Mbps (3) |
| USB | USB 2.0 (1) |
| Number of Cores/Bus Width | 1 Core, 32-Bit |
| Co-Processors/DSP | Communications; QUICC Engine, Security; SEC 2.2 |
| RAM Controllers | DDR, DDR2 |
| Graphics Acceleration | No |
| Display & Interface Controllers | - |
| Security Features | Cryptography |
| SATA | - |
| Additional Interfaces | DUART, I2C, PCI, SPI, TDM, UART |
