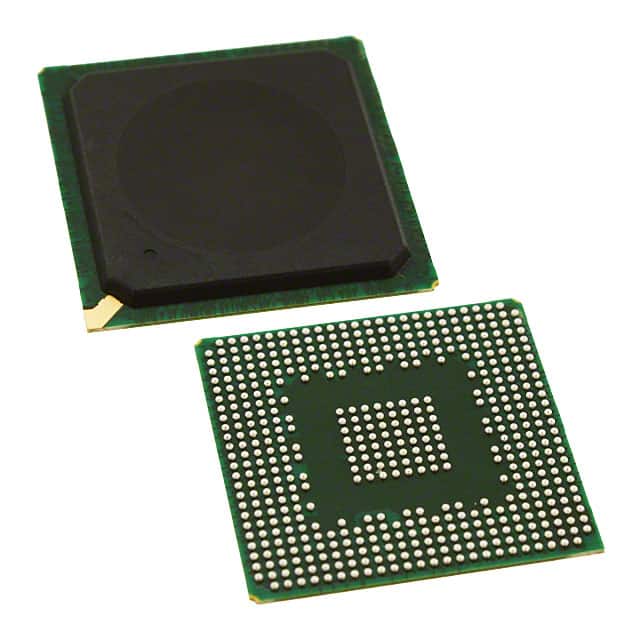

MPC8313ECVRAFF
IC MPU MPC83XX 333MHZ 516TEPBGAManufacturer: NXP USA Inc.
Categories: Microprocessors
Quality Control: Learn More
NXP USA Inc. MPC83xx series MPC8313ECVRAFF is a 32-bit, single-core PowerPC e300c3 microprocessor operating at 333MHz. This component features a 516-TEPBGA (27x27) package and supports surface mount installation. Key interfaces include DUART, HSSI, I2C, PCI, SPI, and USB 2.0 with PHY. It integrates dual 10/100/1000Mbps Ethernet controllers and DDR/DDR2 RAM controllers. The MPC8313ECVRAFF includes the SEC 2.2 co-processor for enhanced security and cryptography. Operating temperature range is -40°C to 105°C (TA), with I/O voltage support for 1.8V, 2.5V, and 3.3V. This microprocessor is utilized in networking, industrial control, and communication infrastructure applications.
Additional Information
Series: MPC83xxRoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TrayDownload Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | 516-BBGA Exposed Pad |
| Mounting Type | Surface Mount |
| Speed | 333MHz |
| Operating Temperature | -40°C ~ 105°C (TA) |
| Core Processor | PowerPC e300c3 |
| Voltage - I/O | 1.8V, 2.5V, 3.3V |
| Supplier Device Package | 516-TEPBGA (27x27) |
| Ethernet | 10/100/1000Mbps (2) |
| USB | USB 2.0 + PHY (1) |
| Number of Cores/Bus Width | 1 Core, 32-Bit |
| Co-Processors/DSP | Security; SEC 2.2 |
| RAM Controllers | DDR, DDR2 |
| Graphics Acceleration | No |
| Display & Interface Controllers | - |
| Security Features | Cryptography |
| SATA | - |
| Additional Interfaces | DUART, HSSI, I2C, PCI, SPI |
