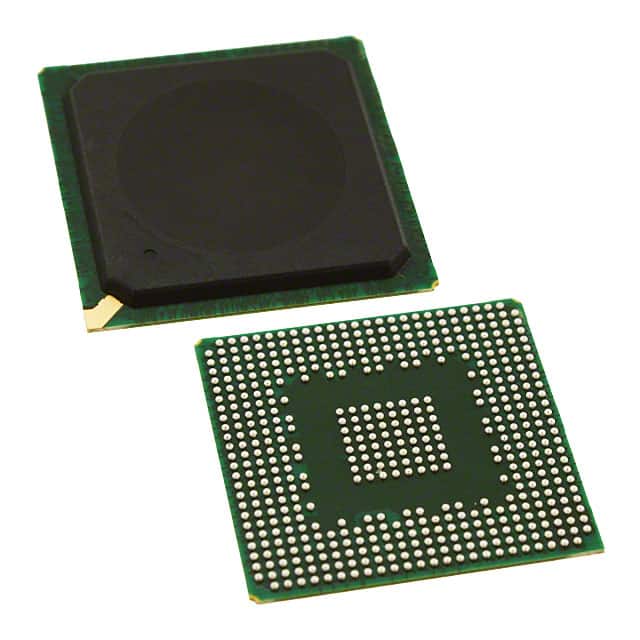

MPC8313CVRAFF
IC MPU MPC83XX 333MHZ 516TEPBGAManufacturer: NXP USA Inc.
Categories: Microprocessors
Quality Control: Learn More
NXP USA Inc. MPC83xx Series MPC8313CVRAFF is a 32-bit PowerPC e300c3 core microprocessor operating at 333MHz. This component features a single core and is housed in a 516-TEPBGA (27x27) package, suitable for surface mounting. Connectivity is enhanced through integrated dual UARTs, HSSI, I2C, SPI, and two 10/100/1000Mbps Ethernet interfaces. It also supports USB 2.0 with an integrated PHY. Memory support includes DDR and DDR2 controllers. The device operates across an extended temperature range of -40°C to 105°C (TA) and offers flexible I/O voltage options of 1.8V, 2.5V, and 3.3V. This processor is commonly found in networking equipment, industrial control systems, and telecommunications infrastructure.
Additional Information
Series: MPC83xxRoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TrayDownload Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | 516-BBGA Exposed Pad |
| Mounting Type | Surface Mount |
| Speed | 333MHz |
| Operating Temperature | -40°C ~ 105°C (TA) |
| Core Processor | PowerPC e300c3 |
| Voltage - I/O | 1.8V, 2.5V, 3.3V |
| Supplier Device Package | 516-TEPBGA (27x27) |
| Ethernet | 10/100/1000Mbps (2) |
| USB | USB 2.0 + PHY (1) |
| Number of Cores/Bus Width | 1 Core, 32-Bit |
| Co-Processors/DSP | - |
| RAM Controllers | DDR, DDR2 |
| Graphics Acceleration | No |
| Display & Interface Controllers | - |
| Security Features | - |
| SATA | - |
| Additional Interfaces | DUART, HSSI, I2C, PCI, SPI |
