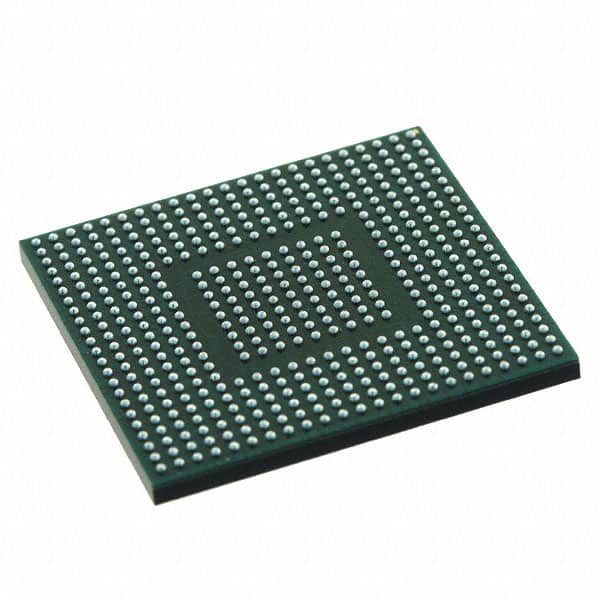

MPC8309CVMAHFCA
IC MPU MPC83XX 417MHZ 489BGAManufacturer: NXP USA Inc.
Categories: Microprocessors
Quality Control: Learn More
NXP USA Inc. MPC83xx series MPC8309CVMAHFCA is a 32-bit PowerPC e300c3 microprocessor featuring a single core operating at 417MHz. This component is housed in a 489-PBGA 19x19 package and supports DDR2 RAM controllers. Key interfaces include three 10/100Mbps Ethernet ports, USB 2.0, CAN, DUART, I2C, MMC/SD, PCI, SPI, and TDM. The integrated QUICC Engine serves as a communications co-processor. Designed for surface mounting, it operates within an ambient temperature range of -40°C to 105°C. This microprocessor is suitable for applications in industrial automation, networking, and telecommunications.
Additional Information
Series: MPC83xxRoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | 489-LFBGA |
| Mounting Type | Surface Mount |
| Speed | 417MHz |
| Operating Temperature | -40°C ~ 105°C (TA) |
| Core Processor | PowerPC e300c3 |
| Voltage - I/O | 1.8V, 3.3V |
| Supplier Device Package | 489-PBGA (19x19) |
| Ethernet | 10/100Mbps (3) |
| USB | USB 2.0 (1) |
| Number of Cores/Bus Width | 1 Core, 32-Bit |
| Co-Processors/DSP | Communications; QUICC Engine |
| RAM Controllers | DDR2 |
| Graphics Acceleration | No |
| Display & Interface Controllers | - |
| Security Features | - |
| SATA | - |
| Additional Interfaces | CAN, DUART, I2C, MMC/SD, PCI, SPI, TDM |
