MPC8308VMADD
IC MPU MPC83XX 266MHZ 473MAPBGAManufacturer: NXP USA Inc.
Categories: Microprocessors
Quality Control: Learn More

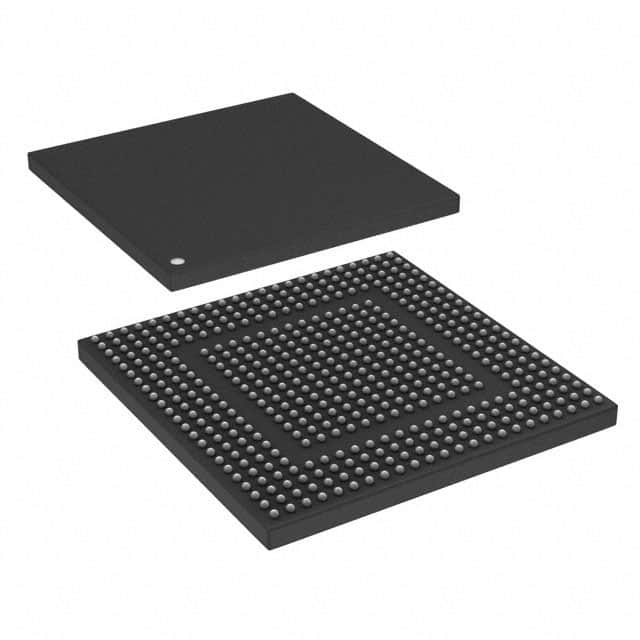

PowerPC e300c3 Microprocessor IC MPC83xx 1 Core, 32-Bit 266MHz 473-MAPBGA (19x19)
Additional Information
Series: MPC83xxRoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | 473-LFBGA |
| Mounting Type | Surface Mount |
| Speed | 266MHz |
| Operating Temperature | 0°C ~ 105°C (TA) |
| Core Processor | PowerPC e300c3 |
| Voltage - I/O | 1.8V, 2.5V, 3.3V |
| Supplier Device Package | 473-MAPBGA (19x19) |
| Ethernet | 10/100/1000Mbps (3) |
| USB | USB 2.0 (1) |
| Number of Cores/Bus Width | 1 Core, 32-Bit |
| Co-Processors/DSP | - |
| RAM Controllers | DDR2 |
| Graphics Acceleration | No |
| Display & Interface Controllers | - |
| Security Features | - |
| SATA | - |
| Additional Interfaces | DUART, HSSI, I2C, MMC/SD/SDIO, SPI |
