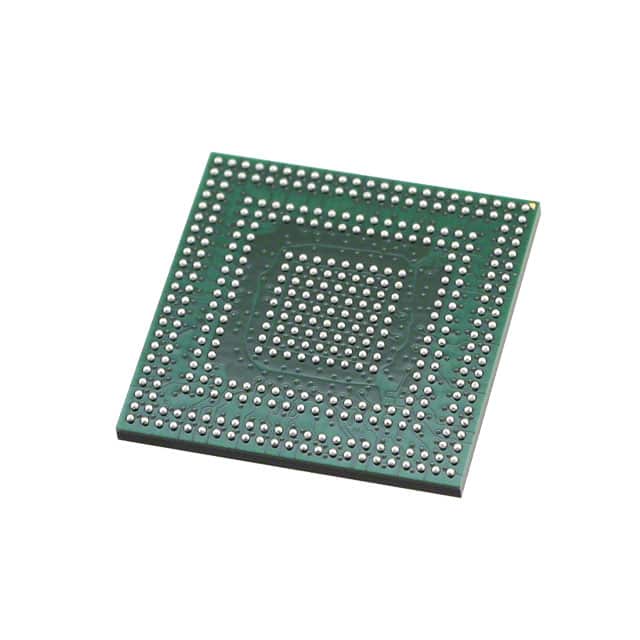

MPC8306VMAFDCA
IC MPU MPC83XX 333MHZ 369BGAManufacturer: NXP USA Inc.
Categories: Microprocessors
Quality Control: Learn More
NXP USA Inc. MPC83xx series MPC8306VMAFDCA is a 32-bit, single-core PowerPC e300c3 microprocessor operating at 333MHz. This component features a 369-PBGA (19x19) package and supports DDR2 RAM controllers. On-chip interfaces include CAN, DUART, I2C, MMC/SD, SPI, and TDM, along with three 10/100Mbps Ethernet ports and a USB 2.0 port. The processor integrates a Communications QUICC Engine for advanced networking capabilities. Designed for industrial and networking applications, it operates within a temperature range of 0°C to 105°C (TA). Mounting is surface mount with I/O voltages at 1.8V and 3.3V.
Additional Information
Series: MPC83xxRoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | 369-LFBGA |
| Mounting Type | Surface Mount |
| Speed | 333MHz |
| Operating Temperature | 0°C ~ 105°C (TA) |
| Core Processor | PowerPC e300c3 |
| Voltage - I/O | 1.8V, 3.3V |
| Supplier Device Package | 369-PBGA (19x19) |
| Ethernet | 10/100Mbps (3) |
| USB | USB 2.0 (1) |
| Number of Cores/Bus Width | 1 Core, 32-Bit |
| Co-Processors/DSP | Communications; QUICC Engine |
| RAM Controllers | DDR2 |
| Graphics Acceleration | No |
| Display & Interface Controllers | - |
| Security Features | - |
| SATA | - |
| Additional Interfaces | CAN, DUART, I2C, MMC/SD, SPI, TDM |
