MPC8306SVMAFDCA
IC MPU MPC83XX 333MHZ 369BGAManufacturer: NXP USA Inc.
Categories: Microprocessors
Quality Control: Learn More

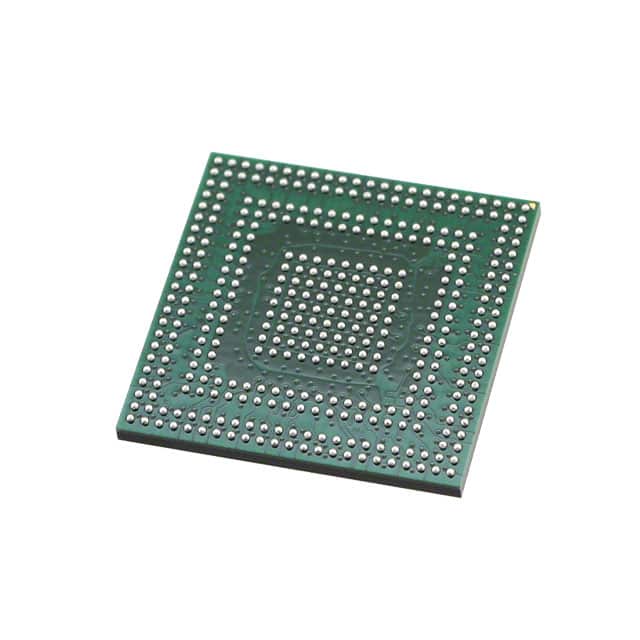

NXP USA Inc. MPC83xx series microprocessor, part number MPC8306SVMAFDCA. This 32-bit, single-core PowerPC e300c3 microprocessor operates at 333MHz, housed in a 369-PBGA (19x19) package. It features integrated Ethernet controllers supporting 10/100Mbps speeds, a USB 2.0 interface, and a QUICC Engine for communication co-processing. Additional interfaces include DUART, I2C, and SPI. Memory support is provided via DDR2 RAM controllers. The operating temperature range is 0°C to 105°C (TA). This component is suitable for applications in networking, industrial control, and telecommunications.
Additional Information
Series: MPC83xxRoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | 369-LFBGA |
| Mounting Type | Surface Mount |
| Speed | 333MHz |
| Operating Temperature | 0°C ~ 105°C (TA) |
| Core Processor | PowerPC e300c3 |
| Voltage - I/O | 1.8V, 3.3V |
| Supplier Device Package | 369-PBGA (19x19) |
| Ethernet | 10/100Mbps (3) |
| USB | USB 2.0 (1) |
| Number of Cores/Bus Width | 1 Core, 32-Bit |
| Co-Processors/DSP | Communications; QUICC Engine |
| RAM Controllers | DDR2 |
| Graphics Acceleration | No |
| Display & Interface Controllers | - |
| Security Features | - |
| SATA | - |
| Additional Interfaces | DUART, I2C, SPI, TDM |
