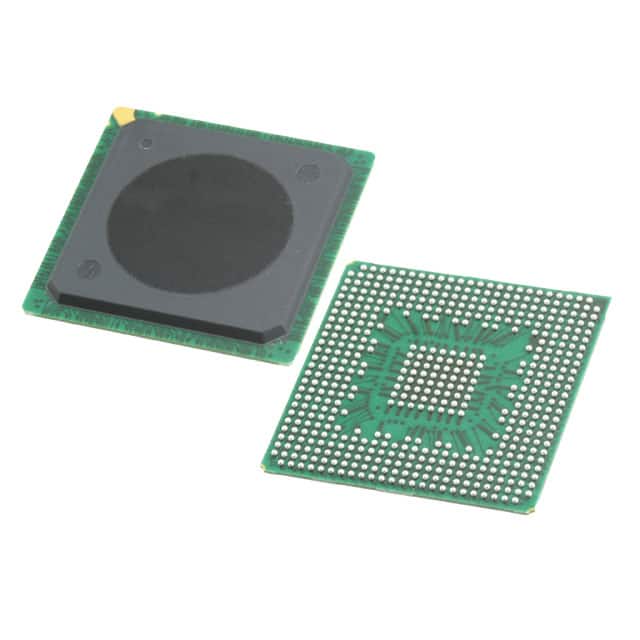

MPC8272CZQMIBA
IC MPU MPC82XX 266MHZ PBGA516Manufacturer: NXP USA Inc.
Categories: Microprocessors
Quality Control: Learn More
NXP USA Inc. MPC8272CZQMIBA is a PowerPC G2_LE microprocessor from the MPC82xx series. This 32-bit, single-core component operates at 266MHz and is housed in a 516-PBGA (27x27) package. It features a RISC Communications Processor Module (CPM) for communications processing and a Security Engine (SEC) for cryptographic functions and random number generation. The MPC8272CZQMIBA supports multiple interfaces including I2C, SCC, SMC, SPI, UART, and USART, along with dual 10/100Mbps Ethernet ports and USB 2.0. Memory support includes DRAM and SDRAM controllers. This device is designed for surface mount applications and operates within an ambient temperature range of -40°C to 105°C. It finds application in networking infrastructure, telecommunications, and industrial control systems.
Additional Information
Series: MPC82xxRoHS Status: RoHS non-compliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | 516-BBGA |
| Mounting Type | Surface Mount |
| Speed | 266MHz |
| Operating Temperature | -40°C ~ 105°C (TA) |
| Core Processor | PowerPC G2_LE |
| Voltage - I/O | 3.3V |
| Supplier Device Package | 516-PBGA (27x27) |
| Ethernet | 10/100Mbps (2) |
| USB | USB 2.0 (1) |
| Number of Cores/Bus Width | 1 Core, 32-Bit |
| Co-Processors/DSP | Communications; RISC CPM, Security; SEC |
| RAM Controllers | DRAM, SDRAM |
| Graphics Acceleration | No |
| Display & Interface Controllers | - |
| Security Features | Cryptography, Random Number Generator |
| SATA | - |
| Additional Interfaces | I2C, SCC, SMC, SPI, UART, USART |
