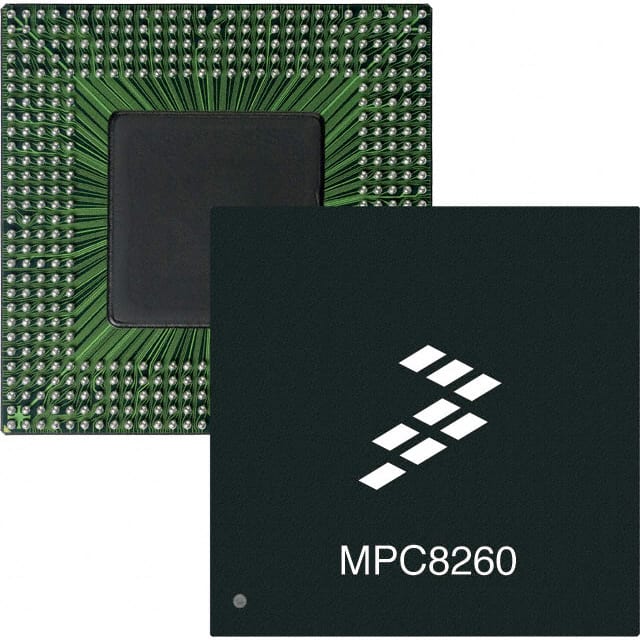

MPC8270VVUPEA
IC MPU MPC82XX 450MHZ 480TBGAManufacturer: NXP USA Inc.
Categories: Microprocessors
Quality Control: Learn More
NXP USA Inc. MPC8270VVUPEA is a PowerPC G2_LE microprocessor from the MPC82xx series, featuring a single 32-bit core operating at 450MHz. This surface mount component is housed in a 480-TBGA (37.5x37.5) package. It integrates extensive peripheral capabilities including multiple Ethernet ports (10/100Mbps), a USB 2.0 interface, and serial interfaces such as I2C, SCC, SMC, SPI, UART, and USART. The device includes a RISC CPM co-processor for communications acceleration and supports DRAM and SDRAM controllers. Its operating temperature range is 0°C to 105°C (TA) with an I/O voltage of 3.3V. This microprocessor is suitable for applications in networking, telecommunications, and industrial automation.
Additional Information
Series: MPC82xxRoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | 480-LBGA Exposed Pad |
| Mounting Type | Surface Mount |
| Speed | 450MHz |
| Operating Temperature | 0°C ~ 105°C (TA) |
| Core Processor | PowerPC G2_LE |
| Voltage - I/O | 3.3V |
| Supplier Device Package | 480-TBGA (37.5x37.5) |
| Ethernet | 10/100Mbps (3) |
| USB | USB 2.0 (1) |
| Number of Cores/Bus Width | 1 Core, 32-Bit |
| Co-Processors/DSP | Communications; RISC CPM |
| RAM Controllers | DRAM, SDRAM |
| Graphics Acceleration | No |
| Display & Interface Controllers | - |
| Security Features | - |
| SATA | - |
| Additional Interfaces | I2C, SCC, SMC, SPI, UART, USART |
