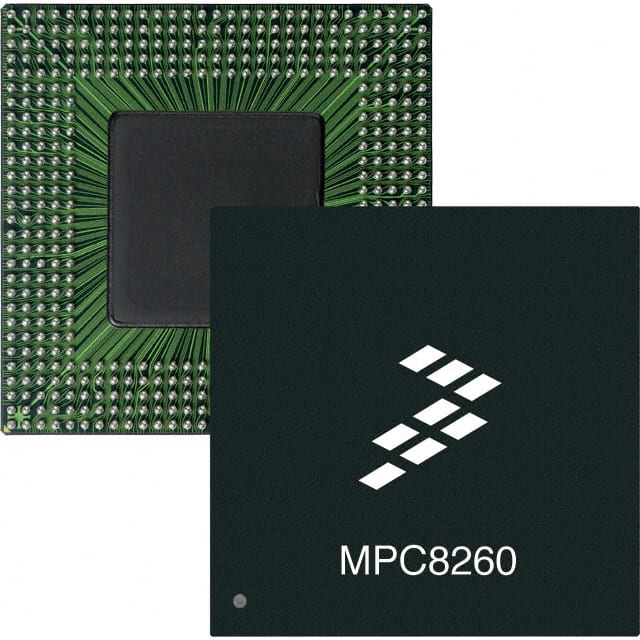

MPC8260AZUPJDB
IC MPU MPC82XX 300MHZ 480TBGAManufacturer: NXP USA Inc.
Categories: Microprocessors
Quality Control: Learn More
NXP USA Inc. MPC82xx Series MPC8260AZUPJDB is a 32-bit PowerPC G2 microprocessor designed for high-performance embedded applications. This component features a single core operating at 300MHz, integrated with a Communications Processor Module (CPM) for enhanced communication processing. The MPC8260AZUPJDB supports multiple interfaces including I2C, SCC, SMC, SPI, UART, and USART, and offers three 10/100Mbps Ethernet ports. Memory support includes DRAM and SDRAM controllers. Packaged in a 480-TBGA with an exposed pad, this surface-mount device operates within a temperature range of 0°C to 105°C. Its robust feature set makes it suitable for telecommunications, networking infrastructure, and industrial automation.
Additional Information
Series: MPC82xxRoHS Status: RoHS non-compliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TrayDownload Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | 480-LBGA Exposed Pad |
| Mounting Type | Surface Mount |
| Speed | 300MHz |
| Operating Temperature | 0°C ~ 105°C (TA) |
| Core Processor | PowerPC G2 |
| Voltage - I/O | 3.3V |
| Supplier Device Package | 480-TBGA (37.5x37.5) |
| Ethernet | 10/100Mbps (3) |
| USB | - |
| Number of Cores/Bus Width | 1 Core, 32-Bit |
| Co-Processors/DSP | Communications; RISC CPM |
| RAM Controllers | DRAM, SDRAM |
| Graphics Acceleration | No |
| Display & Interface Controllers | - |
| Security Features | - |
| SATA | - |
| Additional Interfaces | I2C, SCC, SMC, SPI, UART, USART |
