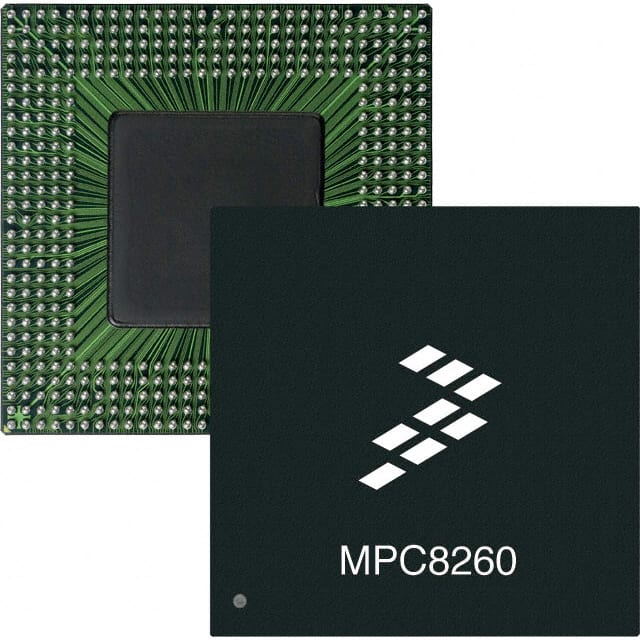

MPC8260AZUMHBB
IC MPU MPC82XX 266MHZ 480TBGAManufacturer: NXP USA Inc.
Categories: Microprocessors
Quality Control: Learn More
NXP USA Inc. MPC82xx series MPC8260AZUMHBB is a 32-bit PowerPC G2 microprocessor featuring a single core operating at 266MHz. This component is housed in a 480-TBGA (37.5x37.5) package with an exposed pad. It integrates a RISC CPM for communications co-processing. The MPC8260AZUMHBB offers multiple interfaces including I2C, SCC, SMC, SPI, UART, and USART, along with three 10/100Mbps Ethernet ports. Memory support includes DRAM and SDRAM controllers. This device is suitable for applications requiring robust networking and processing capabilities, commonly found in telecommunications infrastructure and industrial automation systems. The operating temperature range is 0°C to 105°C.
Additional Information
Series: MPC82xxRoHS Status: RoHS non-compliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TrayDownload Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | 480-LBGA Exposed Pad |
| Mounting Type | Surface Mount |
| Speed | 266MHz |
| Operating Temperature | 0°C ~ 105°C (TA) |
| Core Processor | PowerPC G2 |
| Voltage - I/O | 3.3V |
| Supplier Device Package | 480-TBGA (37.5x37.5) |
| Ethernet | 10/100Mbps (3) |
| USB | - |
| Number of Cores/Bus Width | 1 Core, 32-Bit |
| Co-Processors/DSP | Communications; RISC CPM |
| RAM Controllers | DRAM, SDRAM |
| Graphics Acceleration | No |
| Display & Interface Controllers | - |
| Security Features | - |
| SATA | - |
| Additional Interfaces | I2C, SCC, SMC, SPI, UART, USART |
