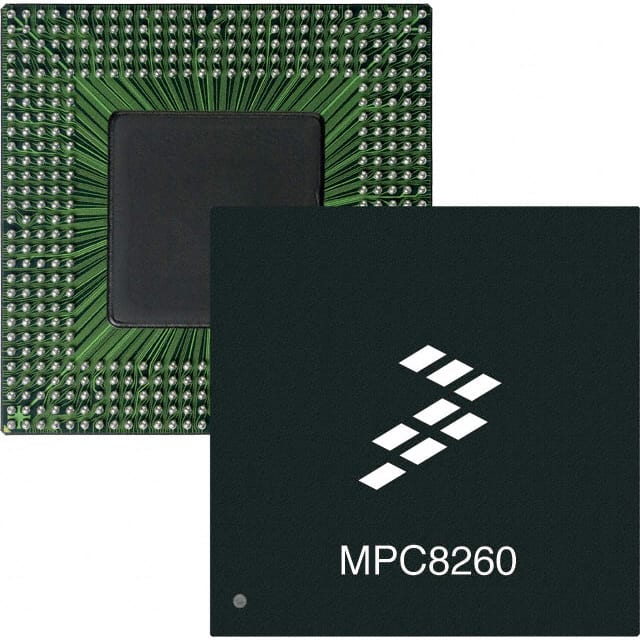

MPC8260AVVMHBB
IC MPU MPC82XX 266MHZ 480TBGAManufacturer: NXP USA Inc.
Categories: Microprocessors
Quality Control: Learn More
NXP USA Inc. MPC82xx series microcontroller, part MPC8260AVVMHBB, is a 32-bit PowerPC G2 core processor operating at 266MHz. This device features a single core and integrates a Communications Processor Module (CPM) with RISC architecture for enhanced communication tasks. It offers multiple Ethernet ports supporting 10/100Mbps and includes I2C, SCC, SMC, SPI, UART, and USART interfaces for versatile connectivity. The MPC8260AVVMHBB supports DRAM and SDRAM memory controllers. Packaged in a 480-TBGA (37.5x37.5) for surface mounting, it operates within an ambient temperature range of 0°C to 105°C. This microprocessor is utilized in networking infrastructure, industrial automation, and telecommunications equipment.
Additional Information
Series: MPC82xxRoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDownload Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | 480-LBGA Exposed Pad |
| Mounting Type | Surface Mount |
| Speed | 266MHz |
| Operating Temperature | 0°C ~ 105°C (TA) |
| Core Processor | PowerPC G2 |
| Voltage - I/O | 3.3V |
| Supplier Device Package | 480-TBGA (37.5x37.5) |
| Ethernet | 10/100Mbps (3) |
| USB | - |
| Number of Cores/Bus Width | 1 Core, 32-Bit |
| Co-Processors/DSP | Communications; RISC CPM |
| RAM Controllers | DRAM, SDRAM |
| Graphics Acceleration | No |
| Display & Interface Controllers | - |
| Security Features | - |
| SATA | - |
| Additional Interfaces | I2C, SCC, SMC, SPI, UART, USART |
