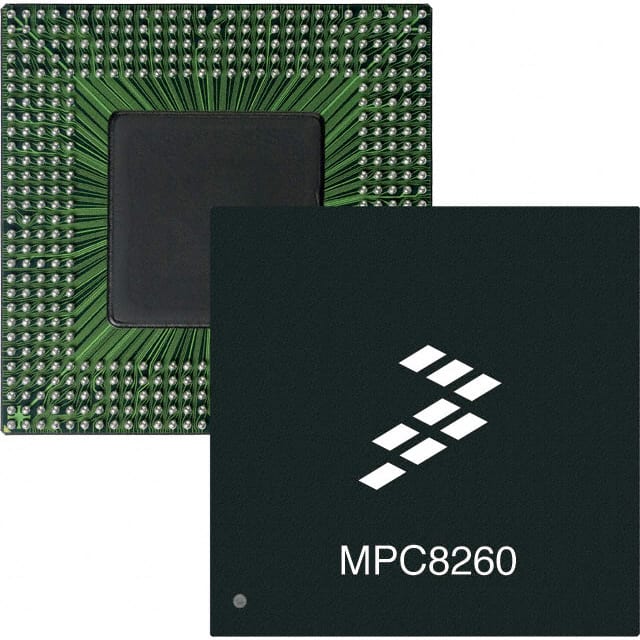

MPC8255AVVMHBB
IC MPU MPC82XX 266MHZ 480TBGAManufacturer: NXP USA Inc.
Categories: Microprocessors
Quality Control: Learn More
NXP USA Inc. MPC82xx Series PowerPC G2 Microprocessor MPC8255AVVMHBB. This 32-bit, single-core microprocessor operates at 266MHz, featuring a 480-TBGA (37.5x37.5) package with an exposed pad. It integrates a RISC Communications Processor Module (CPM) for co-processing tasks. Connectivity is provided via multiple SCC, SMC, SPI, UART, and USART interfaces, alongside three 10/100Mbps Ethernet ports and I2C support. The MPC8255AVVMHBB includes DRAM and SDRAM controllers. This component is suitable for demanding applications in networking infrastructure, industrial automation, and telecommunications. Operating temperature range is 0°C to 105°C.
Additional Information
Series: MPC82xxRoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TrayDownload Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | 480-LBGA Exposed Pad |
| Mounting Type | Surface Mount |
| Speed | 266MHz |
| Operating Temperature | 0°C ~ 105°C (TA) |
| Core Processor | PowerPC G2 |
| Voltage - I/O | 3.3V |
| Supplier Device Package | 480-TBGA (37.5x37.5) |
| Ethernet | 10/100Mbps (3) |
| USB | - |
| Number of Cores/Bus Width | 1 Core, 32-Bit |
| Co-Processors/DSP | Communications; RISC CPM |
| RAM Controllers | DRAM, SDRAM |
| Graphics Acceleration | No |
| Display & Interface Controllers | - |
| Security Features | - |
| SATA | - |
| Additional Interfaces | I2C, SCC, SMC, SPI, UART, USART |
