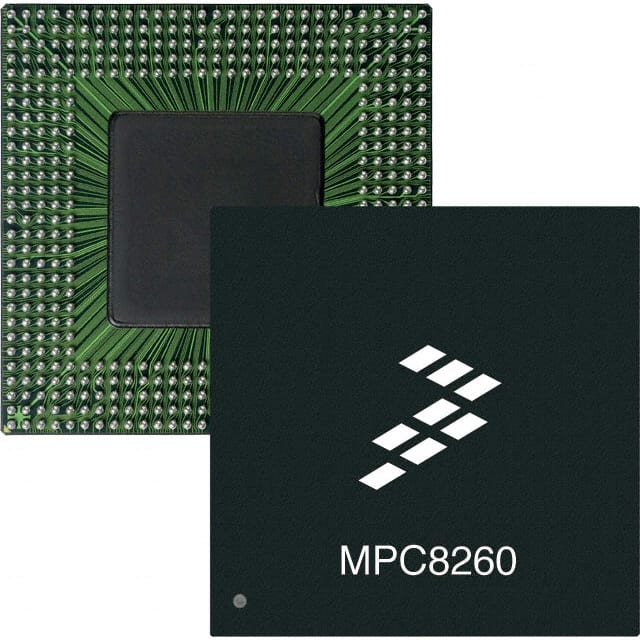

MPC8250AVVPIBC
IC MPU MPC82XX 300MHZ 480TBGAManufacturer: NXP USA Inc.
Categories: Microprocessors
Quality Control: Learn More
The NXP USA Inc. MPC8250AVVPIBC is a 32-bit PowerPC G2 microprocessor from the MPC82xx series, operating at 300MHz. This single-core component features a 480-TBGA (37.5x37.5) package with an exposed pad, designed for surface mounting. Integrated peripherals include multiple Ethernet controllers (10/100Mbps), I2C, SCC, SMC, SPI, UART, and USART interfaces. The processor incorporates a RISC CPM co-processor for communications tasks and supports DRAM and SDRAM memory controllers. Its operating temperature range is 0°C to 105°C (TA). This device is utilized in networking infrastructure, industrial automation, and telecommunications equipment.
Additional Information
Series: MPC82xxRoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TrayDownload Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | 480-LBGA Exposed Pad |
| Mounting Type | Surface Mount |
| Speed | 300MHz |
| Operating Temperature | 0°C ~ 105°C (TA) |
| Core Processor | PowerPC G2 |
| Voltage - I/O | 3.3V |
| Supplier Device Package | 480-TBGA (37.5x37.5) |
| Ethernet | 10/100Mbps (3) |
| USB | - |
| Number of Cores/Bus Width | 1 Core, 32-Bit |
| Co-Processors/DSP | Communications; RISC CPM |
| RAM Controllers | DRAM, SDRAM |
| Graphics Acceleration | No |
| Display & Interface Controllers | - |
| Security Features | - |
| SATA | - |
| Additional Interfaces | I2C, SCC, SMC, SPI, UART, USART |
