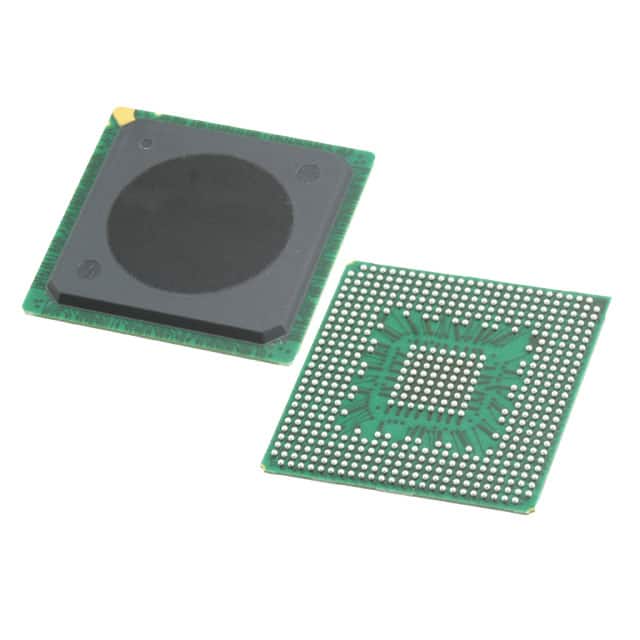

MPC8248CZQTIEA
IC MPU MPC82XX 400MHZ PBGA516Manufacturer: NXP USA Inc.
Categories: Microprocessors
Quality Control: Learn More
NXP USA Inc. MPC82xx Series microprocessor, part number MPC8248CZQTIEA, is a 32-bit PowerPC G2_LE core operating at 400MHz. This 516-PBGA packaged device features a single core and supports DRAM and SDRAM memory controllers. Integrated peripherals include dual 10/100Mbps Ethernet ports, a USB 2.0 interface, and multiple serial interfaces such as I2C, SCC, SMC, SPI, UART, and USART. The MPC8248CZQTIEA incorporates a Communications Processor Module (CPM) and a Security Engine (SEC) for enhanced processing capabilities, including cryptography and random number generation. Designed for operation across a temperature range of -40°C to 105°C (TA), this component is suitable for applications in industrial automation, telecommunications infrastructure, and networking equipment.
Additional Information
Series: MPC82xxRoHS Status: RoHS non-compliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | 516-BBGA |
| Mounting Type | Surface Mount |
| Speed | 400MHz |
| Operating Temperature | -40°C ~ 105°C (TA) |
| Core Processor | PowerPC G2_LE |
| Voltage - I/O | 3.3V |
| Supplier Device Package | 516-PBGA (27x27) |
| Ethernet | 10/100Mbps (2) |
| USB | USB 2.0 (1) |
| Number of Cores/Bus Width | 1 Core, 32-Bit |
| Co-Processors/DSP | Communications; RISC CPM, Security; SEC |
| RAM Controllers | DRAM, SDRAM |
| Graphics Acceleration | No |
| Display & Interface Controllers | - |
| Security Features | Cryptography, Random Number Generator |
| SATA | - |
| Additional Interfaces | I2C, SCC, SMC, SPI, UART, USART |
