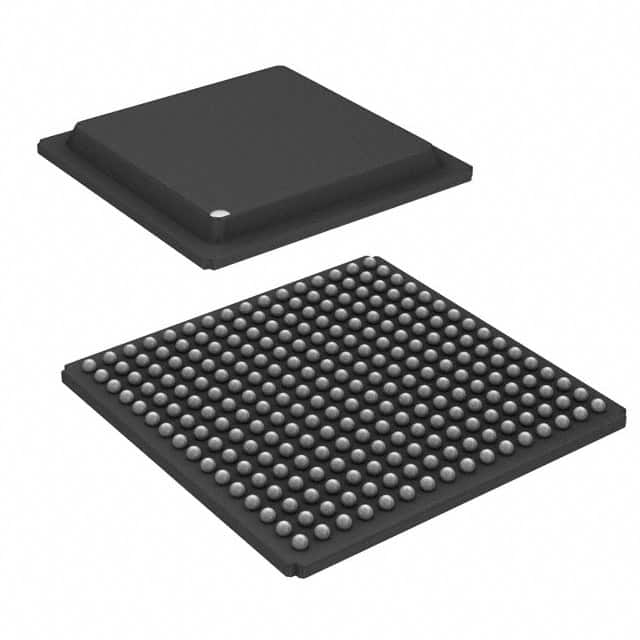

MPC823CZQ66B2T
IC MPU MPC8XX 66MHZ 256BGAManufacturer: NXP USA Inc.
Categories: Microprocessors
Quality Control: Learn More
The NXP USA Inc. MPC8xx series MPC823CZQ66B2T is a 32-bit PowerPC microprocessor featuring a single core operating at 66MHz. This component utilizes a 256-PBGA (23x23) package for surface mounting. Key integrated peripherals include I2C, SMC, SCC, SPI, and UART interfaces, along with a RISC CPM co-processor for communications. Display and interface capabilities are supported by LCD and Video controllers. The device offers 10Mbps Ethernet and USB 1.x connectivity. It is designed with a 3.3V I/O voltage and includes DRAM controllers. This microprocessor finds application in networking, telecommunications, and industrial automation sectors.
Additional Information
Series: MPC8xxRoHS Status: RoHS non-compliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | 256-BBGA |
| Mounting Type | Surface Mount |
| Speed | 66MHz |
| Operating Temperature | -40°C ~ 95°C (TA) |
| Core Processor | PowerPC |
| Voltage - I/O | 3.3V |
| Supplier Device Package | 256-PBGA (23x23) |
| Ethernet | 10Mbps (1) |
| USB | USB 1.x (1) |
| Number of Cores/Bus Width | 1 Core, 32-Bit |
| Co-Processors/DSP | Communications; RISC CPM |
| RAM Controllers | DRAM |
| Graphics Acceleration | No |
| Display & Interface Controllers | LCD, Video |
| Security Features | - |
| SATA | - |
| Additional Interfaces | I2C, SMC, SCC, SPI, UART |
