MPC5200VR400B
IC MPU MPC52XX 400MHZ 272BGAManufacturer: NXP USA Inc.
Categories: Microprocessors
Quality Control: Learn More

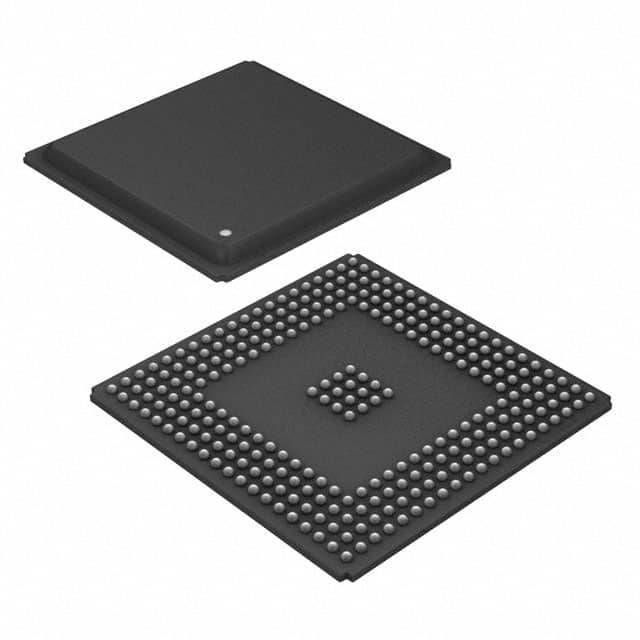

NXP USA Inc. MPC52xx series microprocessor, part number MPC5200VR400B. This PowerPC e300 core, 32-bit microprocessor operates at 400MHz and features a single core. The device is housed in a 272-PBGA (27x27) package suitable for surface mounting. Connectivity options include AC97, CAN, J1850, I2C, I2S, IrDA, PCI, PSC, SPI, and UART. It also provides one 10/100Mbps Ethernet port and two USB 1.1 interfaces. The MPC5200VR400B supports DDR and SDRAM memory controllers. Operating temperature range is 0°C to 70°C (TA). This component is commonly utilized in automotive, industrial automation, and consumer electronics applications.
Additional Information
Series: MPC52xxRoHS Status: ROHS3 CompliantManufacturer Lead Time: 13 week(s)Product Status: Not For New DesignsPackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | 272-BBGA |
| Mounting Type | Surface Mount |
| Speed | 400MHz |
| Operating Temperature | 0°C ~ 70°C (TA) |
| Core Processor | PowerPC e300 |
| Voltage - I/O | 2.5V, 3.3V |
| Supplier Device Package | 272-PBGA (27x27) |
| Ethernet | 10/100Mbps (1) |
| USB | USB 1.1 (2) |
| Number of Cores/Bus Width | 1 Core, 32-Bit |
| Co-Processors/DSP | - |
| RAM Controllers | DDR, SDRAM |
| Graphics Acceleration | No |
| Display & Interface Controllers | - |
| Security Features | - |
| SATA | - |
| Additional Interfaces | AC97, CAN, J1850, I2C, I2S, IrDA, PCI, PSC, SPI, UART |
