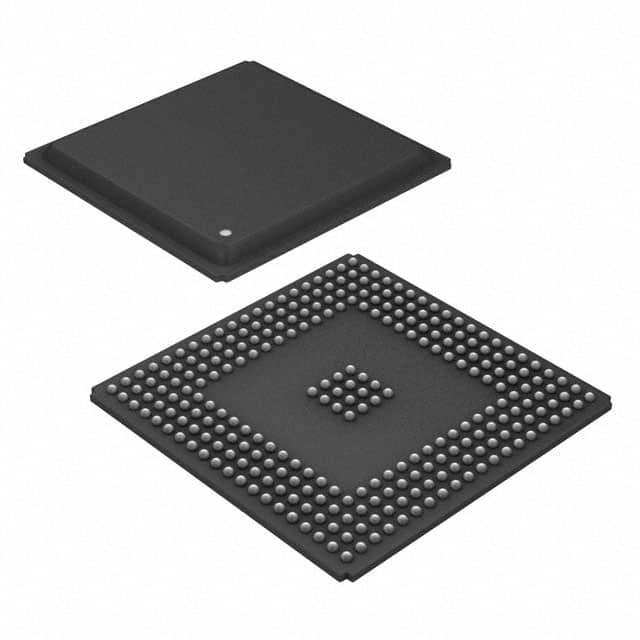

MPC5200CBV400
IC MPU MPC52XX 400MHZ 272BGAManufacturer: NXP USA Inc.
Categories: Microprocessors
Quality Control: Learn More
PowerPC G2_LE Microprocessor IC MPC52xx 1 Core, 32-Bit 400MHz 272-PBGA (27x27)
Additional Information
Series: MPC52xxRoHS Status: RoHS non-compliantManufacturer Lead Time: 13 week(s)Product Status: Not For New DesignsPackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | 272-BBGA |
| Mounting Type | Surface Mount |
| Speed | 400MHz |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Core Processor | PowerPC G2_LE |
| Voltage - I/O | 2.5V, 3.3V |
| Supplier Device Package | 272-PBGA (27x27) |
| Ethernet | 10/100Mbps (1) |
| USB | USB 1.1 (2) |
| Number of Cores/Bus Width | 1 Core, 32-Bit |
| Co-Processors/DSP | - |
| RAM Controllers | DDR, SDRAM |
| Graphics Acceleration | No |
| Display & Interface Controllers | - |
| Security Features | - |
| SATA | - |
| Additional Interfaces | AC97, CAN, J1850, I2C, I2S, IrDA, PCI, PSC, SPI, UART |
