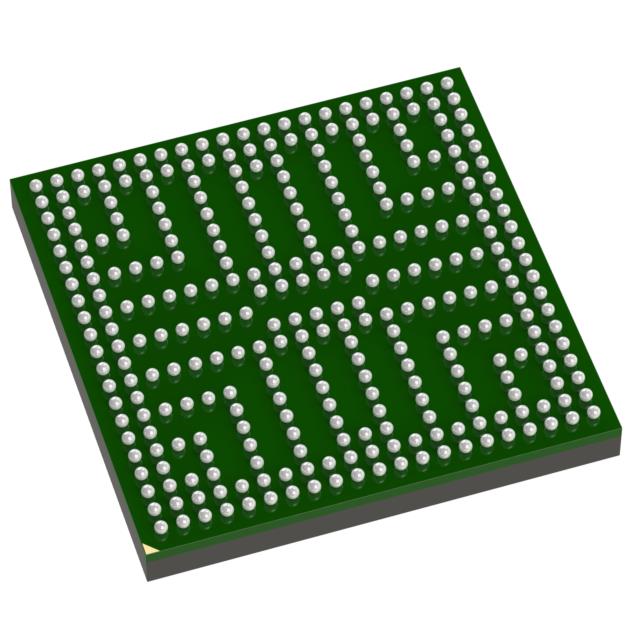

MIMX9331CVTXMAB
MIMX9331CVTXMABManufacturer: NXP USA Inc.
Categories: Microprocessors
Quality Control: Learn More
NXP USA Inc. i.MX 93 series MIMX9331CVTXMAB is a dual-core microprocessor featuring ARM Cortex-A55 and ARM Cortex-M33 cores. This 64-bit processor operates at clock speeds up to 1.7GHz for the Cortex-A55 and 250MHz for the Cortex-M33. The device integrates multimedia processing capabilities with NEON MPE. Connectivity options include dual GbE, two USB 2.0 ports, CANbus, I2C, SPI, UART, and PCIe. Display interfaces support LCD, LVDS, MIPI-CSI, and MIPI-DSI. The MIMX9331CVTXMAB includes advanced security features such as boot security, cryptography, and tamper detection. It supports LPDDR4 RAM and comes in a 306-FCBGA (14x14) package, suitable for surface mounting. This component finds application in industrial automation, automotive infotainment, and advanced consumer electronics.
Additional Information
Series: i.MX 93RoHS Status: RoHS CompliantManufacturer Lead Time: 26 week(s)Product Status: ActivePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | 306-LFBGA, FCBGA |
| Mounting Type | Surface Mount |
| Speed | 250MHz, 1.7GHz |
| Operating Temperature | -40°C ~ 105°C (TJ) |
| Core Processor | ARM® Cortex®-A55, ARM® Cortex®-M33 |
| Voltage - I/O | 1.8V |
| Supplier Device Package | 306-FCBGA (14x14) |
| Ethernet | GbE (2) |
| USB | USB 2.0 (2) |
| Number of Cores/Bus Width | 2 Core, 64-Bit |
| Co-Processors/DSP | Multimedia; NEON™ MPE |
| RAM Controllers | LPDDR4 |
| Graphics Acceleration | No |
| Display & Interface Controllers | LCD, LVDS, MIPI-CSI, MIPI-DSI |
| Security Features | Boot Security, Cryptography, eFuse, Random Number Generator, Secure RTC, Tamper Detection |
| SATA | - |
| Additional Interfaces | CANbus, DMA, GPIO, I2C, I2S, MMC/SD/SDIO, PCIe, QSPI, SAI, SPDIF, SPI, UART |
