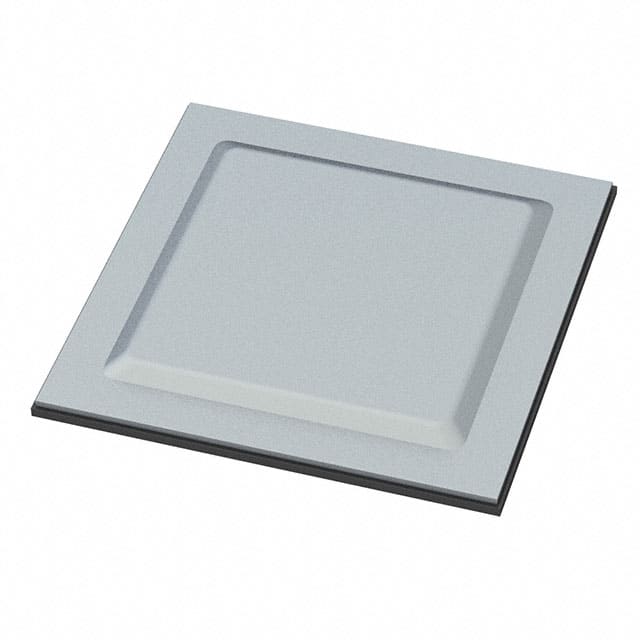

MIMX8QM6AVUFFAB
IC MPU 266MHZ/1.2/1.6GHZ 1313BGAManufacturer: NXP USA Inc.
Categories: Microprocessors
Quality Control: Learn More
NXP USA Inc. MIMX8QM6AVUFFAB is a high-performance microprocessor featuring a heterogeneous multicore architecture. This component integrates ARM Cortex-A72, ARM Cortex-A53, and ARM Cortex-M4F cores, clocked at 1.6GHz, 1.2GHz, and 266MHz respectively, providing robust processing capabilities for demanding applications. The device supports LPDDR4 and DRAM memory controllers and includes graphics acceleration. Additional interfaces such as SPI, UART, and three USB ports enhance connectivity. Designed for surface mounting, this microprocessor is packaged in a 1313-BGA (29x29) configuration and operates within an extended temperature range of -40°C to 125°C (TJ). It is utilized in industries such as automotive, industrial automation, and advanced multimedia systems.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 26 week(s)Product Status: ActivePackaging: TrayDownload Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | 1313-BFBGA |
| Mounting Type | Surface Mount |
| Speed | 266MHz, 1.2GHz, 1.6GHz |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Core Processor | ARM® Cortex®-A72, ARM® Cortex®-M4F, ARM® Cortex®-A53 |
| Supplier Device Package | 1313-BGA (29x29) |
| USB | USB (3) |
| Number of Cores/Bus Width | 2, 2, 4 |
| Co-Processors/DSP | ARM® Cortex®-M4F |
| RAM Controllers | LPDDR4, DRAM |
| Graphics Acceleration | Yes |
| Additional Interfaces | SPI, UART |
