MCIMX6Y2DVM09AA
IC MPU I.MX6 900MHZ 289MAPBGAManufacturer: NXP USA Inc.
Categories: Microprocessors
Quality Control: Learn More

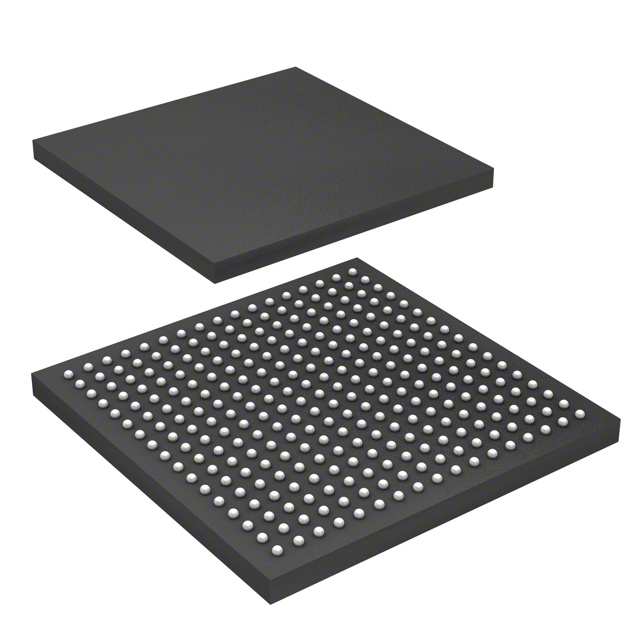

The NXP USA Inc. i.MX6 series microprocessor, part number MCIMX6Y2DVM09AA, is a 32-bit, single-core ARM® Cortex®-A7 processor operating at 900MHz. This component features a 289-MAPBGA (14x14) package and supports LPDDR2, DDR3, and DDR3L RAM controllers. Peripheral connectivity includes multiple CANbus, I2C, SPI, and UART interfaces, alongside dual 10/100Mbps Ethernet ports and dual USB 2.0 OTG with PHY. It also integrates display controllers for Electrophoretic and LCD technologies. Enhanced security is provided through features like A-HAB, ARM TZ, CSU, SJC, and SNVS. This microprocessor is suitable for applications in automotive, industrial, and consumer electronics.
Additional Information
Series: i.MX6RoHS Status: ROHS3 CompliantManufacturer Lead Time: 13 week(s)Product Status: ActivePackaging: TrayDownload Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | 289-LFBGA |
| Mounting Type | Surface Mount |
| Speed | 900MHz |
| Operating Temperature | 0°C ~ 95°C (TJ) |
| Core Processor | ARM® Cortex®-A7 |
| Voltage - I/O | 1.8V, 2.8V, 3.3V |
| Supplier Device Package | 289-MAPBGA (14x14) |
| Ethernet | 10/100Mbps (2) |
| USB | USB 2.0 OTG + PHY (2) |
| Number of Cores/Bus Width | 1 Core, 32-Bit |
| Co-Processors/DSP | Multimedia; NEON™ MPE |
| RAM Controllers | LPDDR2, DDR3, DDR3L |
| Graphics Acceleration | No |
| Display & Interface Controllers | Electrophoretic, LCD |
| Security Features | A-HAB, ARM TZ, CSU, SJC, SNVS |
| SATA | - |
| Additional Interfaces | CANbus, I2C, SPI, UART |
