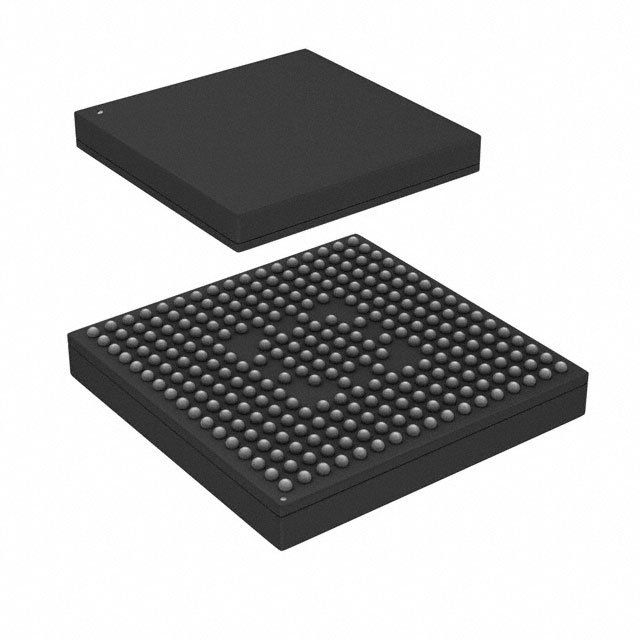

MCIMX6Y2DVK09AB
IC MPU I.MX6 900MHZ 272MAPBGAManufacturer: NXP USA Inc.
Categories: Microprocessors
Quality Control: Learn More
NXP USA Inc. i.MX6 series MCIMX6Y2DVK09AB is a 32-bit, single-core ARM Cortex-A7 microprocessor operating at 900MHz. This component is housed in a 272-MAPBGA (9x9) package and supports LPDDR2, DDR3, and DDR3L RAM controllers. It features multiple interfaces including CANbus, I2C, SPI, and UART, along with dual USB 2.0 OTG ports with PHY. Display capabilities include support for Electrophoretic and LCD controllers. Security features are robust, incorporating A-HAB, ARM TZ, CSU, SJC, and SNVS. This microprocessor is commonly utilized in industrial automation, automotive, and consumer electronics applications. It operates within a junction temperature range of 0°C to 95°C and offers I/O voltages of 1.8V, 2.8V, and 3.3V.
Additional Information
Series: i.MX6RoHS Status: ROHS3 CompliantManufacturer Lead Time: 13 week(s)Product Status: ActivePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | 272-LFBGA |
| Mounting Type | Surface Mount |
| Speed | 900MHz |
| Operating Temperature | 0°C ~ 95°C (TJ) |
| Core Processor | ARM® Cortex®-A7 |
| Voltage - I/O | 1.8V, 2.8V, 3.3V |
| Supplier Device Package | 272-MAPBGA (9x9) |
| Ethernet | 10/100Mbps (2) |
| USB | USB 2.0 OTG + PHY (2) |
| Number of Cores/Bus Width | 1 Core, 32-Bit |
| Co-Processors/DSP | Multimedia; NEON™ MPE |
| RAM Controllers | LPDDR2, DDR3, DDR3L |
| Graphics Acceleration | No |
| Display & Interface Controllers | Electrophoretic, LCD |
| Security Features | A-HAB, ARM TZ, CSU, SJC, SNVS |
| SATA | - |
| Additional Interfaces | CANbus, I2C, SPI, UART |
