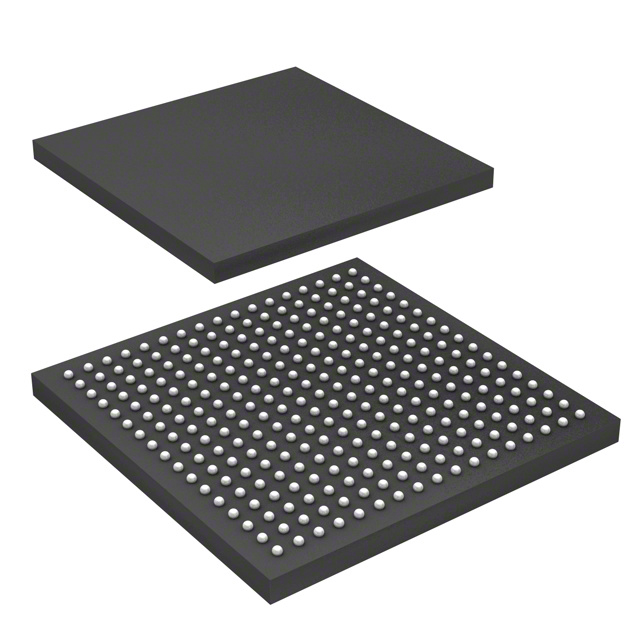

MCIMX6Y2CVM05AA
IC MPU I.MX6 528MHZ 289MAPBGAManufacturer: NXP USA Inc.
Categories: Microprocessors
Quality Control: Learn More
NXP USA Inc. MCIMX6Y2CVM05AA is a 32-bit, single-core ARM Cortex-A7 microprocessor from the i.MX6 series. This component operates at 528MHz and is housed in a 289-MAPBGA (14x14) package. It features multiple interfaces including CANbus, I2C, SPI, and UART, along with dual 10/100Mbps Ethernet ports and dual USB 2.0 OTG with PHY. Memory support includes LPDDR2, DDR3, and DDR3L RAM controllers. Security features are robust, encompassing A-HAB, ARM TZ, CSU, SJC, and SNVS. This microprocessor is suitable for applications requiring display and interface control, such as electrophoretic and LCD controllers, and supports I/O voltages of 1.8V, 2.8V, and 3.3V. The operating temperature range is -40°C to 105°C (TJ). This processor is commonly utilized in industrial automation and consumer electronics.
Additional Information
Series: i.MX6RoHS Status: ROHS3 CompliantManufacturer Lead Time: 13 week(s)Product Status: ActivePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | 289-LFBGA |
| Mounting Type | Surface Mount |
| Speed | 528MHz |
| Operating Temperature | -40°C ~ 105°C (TJ) |
| Core Processor | ARM® Cortex®-A7 |
| Voltage - I/O | 1.8V, 2.8V, 3.3V |
| Supplier Device Package | 289-MAPBGA (14x14) |
| Ethernet | 10/100Mbps (2) |
| USB | USB 2.0 OTG + PHY (2) |
| Number of Cores/Bus Width | 1 Core, 32-Bit |
| Co-Processors/DSP | Multimedia; NEON™ MPE |
| RAM Controllers | LPDDR2, DDR3, DDR3L |
| Graphics Acceleration | No |
| Display & Interface Controllers | Electrophoretic, LCD |
| Security Features | A-HAB, ARM TZ, CSU, SJC, SNVS |
| SATA | - |
| Additional Interfaces | CANbus, I2C, SPI, UART |
